Iscar 5506468 ISCAR-5506468
  1. pin-int

ISCAR-5506468

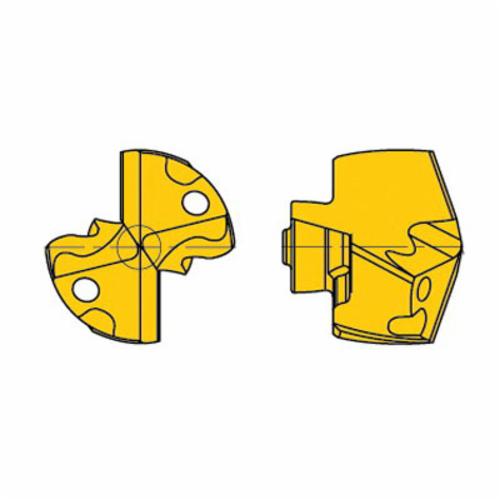

Iscar 5506468 CHAMDRILL JET Indexable Head Replaceable Tip Drill, ANSI Code: IDM 0441 IC908, PVD-TiAlN Coated, 11 Insert Seat, 140 deg Included, Manufacturer's Grade: IC908, TiAlN

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR-5506468
  • MPN: 5506468
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Iscar Replaceable Tip Drill, Indexable Head, Series: CHAMDRILL JET, ANSI Code: IDM 0441 IC908, 11 Insert Seat, 140 deg Included Angle, Manufacturer's Grade: IC908, Through Coolant: Yes, Submicron Carbide, TiAlN, Applicable Materials: Stainless Steel and High Temperature Alloys

ANSI Code      :      IDM 0441 IC908
Applicable Materials      :      Stainless Steel and High Temperature Alloys
Finish      :      TiAlN
Included Angle      :      140 deg
Insert Seat Size      :      11
Manufacturer's Grade      :      IC908
Material      :      Submicron Carbide
Series      :      CHAMDRILL JET
Through Coolant (Yes/No)      :      Yes
Type      :      Indexable Head
  • The drill head features a t-land on the cutting edge
