ISCAR 5503015

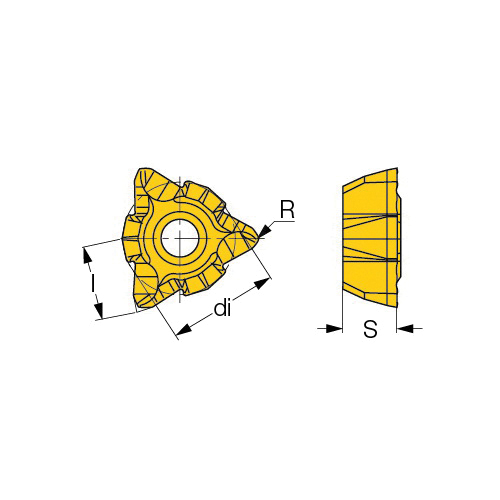

Iscar 5503075 DZDRILLS Single Sided Indexable Drill Insert, Trigon Shape, Material Grade: C2, C3, C5, C6, 05T304 Insert, WOLH Insert, 3.81 mm THK, 8 mm Inscribed Circle, For Use On Alloy Steels and Stainless Steel, Manufacturer's Grade: IC328
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 5503015
- MPN: 5503075
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 10/PK
-
Price:
Iscar Indexable Drill Insert, Single Sided, Series: JABRO® Solid2 JS554, WOLH Insert, 05T304 Insert, Trigon, 8 mm Inscribed Circle, 3.81 mm Thickness, SW Chipbreaker, 0.4 mm Corner Radius, Manufacturer's Grade: IC328, 80 deg Included Angle, ISO Code: WOLH 05T304-SW IC328, Alloy Steels and Stainless Steel For Use On, Carbide, TiCN, Material Grade: C2, C3, C5, C6
| Chipbreaker | : | SW |
| Corner Radius | : | 0.4 mm |
| Finish | : | TiCN |
| For Use On | : | Alloy Steels and Stainless Steel |
| ISO Code | : | WOLH 05T304-SW IC328 |
| Included Angle | : | 80 deg |
| Inscribed Circle | : | 8 mm |
| Insert Size | : | 05T304 |
| Insert Style | : | WOLH |
| Manufacturer's Grade | : | IC328 |
| Material Grade | : | C2, C3, C5, C6 |
| Material | : | Carbide |
| Series | : | DZDRILLS |
| Shape | : | Trigon |
| Thickness | : | 3.81 mm |
| Type | : | Single Sided |
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
- Inserts for DZ drills with serrated cutting edges and a wide chipformer
