Iscar 3201404 ISCAR-3201404
  1. pin-int

ISCAR-3201404

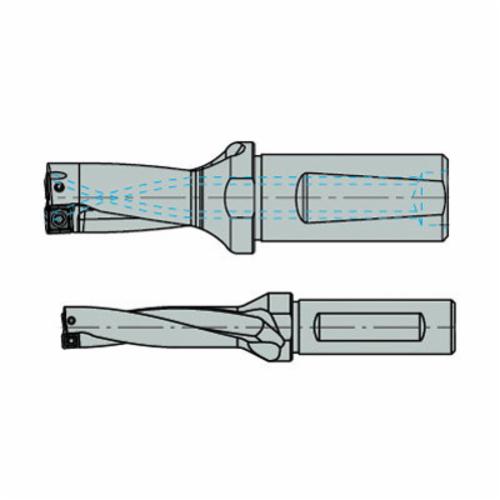

Iscar 3201404 DR-TWIST Indexable Insert Drill, 0.988 in Drill, 1.26 in Modular Connection, 1 in Dia Shank, 4XD Drill Depth by Dia Ratio, SOGX/SOMX Insert, 7.36 in OAL, 3-1/2 in D Max Drill

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR-3201404
  • MPN: 3201404
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Iscar Indexable Insert Drill, Series: DR-TWIST, 0.988 in Drill, 1 in Shank Dia, 3 in Shank Length, Whistle Notch Shank, 1.26 in Modular Connection Size, SOGX/SOMX Insert, 3-1/2 in Maximum Drill Depth, 7.36 in Overall Length, 7/8 in Dia, 4XD Drill Depth by Dia Ratio, Insert Compatibility: SOGX-AL, SOMX-DT, SOMX-GF, SOMX-HD, 3-1/2 in Flute Length, Yes Through Coolant (Yes/No)

Diameter      :      7/8 in
Drill Depth by Diameter Ratio      :      4XD
Drill Size      :      0.988 in
Flute Length      :      3-1/2 in
Insert Compatibility      :      SOGX-AL, SOMX-DT, SOMX-GF, SOMX-HD
Insert Style      :      SOGX/SOMX
Maximum Drill Depth      :      3-1/2 in
Modular Connection Size      :      1.26 in
Overall Length      :      7.36 in
Series      :      DR-TWIST
Shank Diameter      :      1 in
Shank Length      :      3 in
Shank Type      :      Whistle Notch
Through Coolant (Yes/No)      :      Yes
