Iscar 3200475 ISCAR-3200475
  1. pin-int

ISCAR-3200475

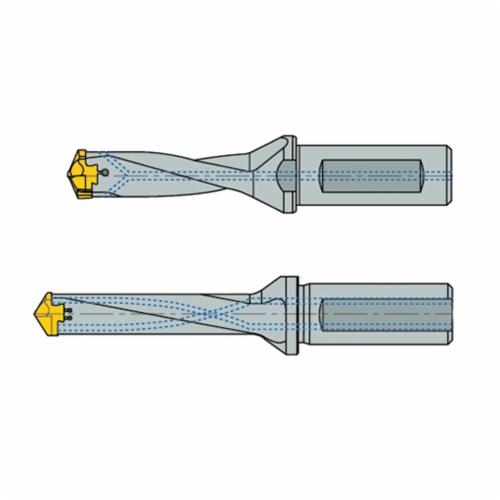

Iscar 3200475 CHAMDRILL Indexable Head Replaceable Tip Drill, 0.472 to 0.488 in Drill, IDI-SG, IDI-SK Insert, 3.95 in OAL, 3XD Drill Depth by Dia Ratio, 12 Insert Seat, 5/8 in Dia Shank, DCM Toolholder

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR-3200475
  • MPN: 3200475
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Iscar Replaceable Tip Drill, Indexable Head, Series: CHAMDRILL, 0.472 to 0.488 in Drill, Weldon Flat Shank, 5/8 in Shank Diameter, 1.89 in Shank Length, 1.41 in Flute Length, 3.95 in Overall Length, DCM Toolholder, 1.41 in Maximum Drill Depth, 3XD Drill Depth by Diameter Ratio, IDI-SG, IDI-SK Insert, 12 Insert Seat, Yes Through Coolant

Drill Depth by Diameter Ratio      :      3XD
Drill Size      :      0.472 to 0.488 in
Flute Length      :      1.41 in
Insert Seat Size      :      12
Insert Style      :      IDI-SG, IDI-SK
Maximum Drill Depth      :      1.41 in
Overall Length      :      3.95 in
Series      :      CHAMDRILL
Shank Diameter      :      5/8 in
Shank Length      :      1.89 in
Shank Type      :      Weldon Flat
Through Coolant (Yes/No)      :      Yes
Toolholder Type      :      DCM
Type      :      Indexable Head
