Iscar 2800652 CUT-GRIP Indexable Grooving Toolholder, Insert Compatibility: GI.., 0.212 in Insert Seat, Left Hand Cutting, 0.236 in W Min Groove, External, 1 in H x 1 in W Shank, GHGL Toolholder

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR 2800654
  • MPN: 2800652
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

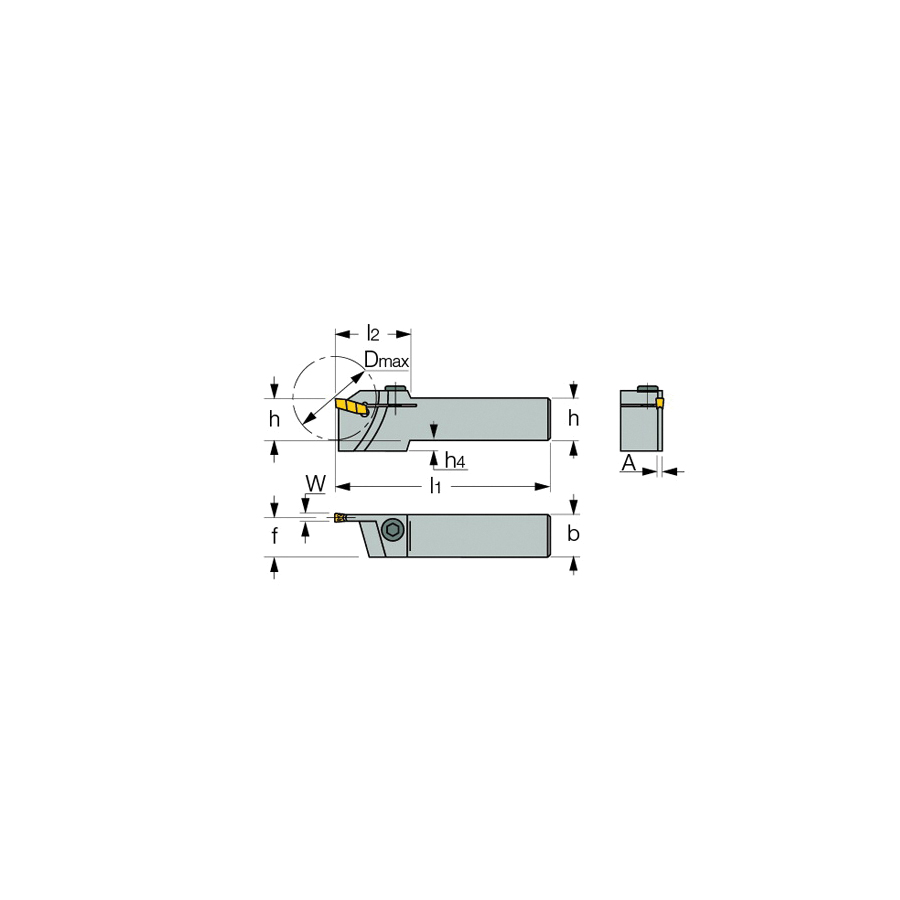

Iscar Indexable Grooving Toolholder, Series: CUT-GRIP, Insert Compatibility: GI.., GHGL Toolholder, 1.8 in Head Length, 6 in Overall Length, 1 in H x 1 in W Shank, 0.212 in Insert Seat, Left Hand Cutting Direction, 0.236 in Minimum Groove Width, 1.18 in Maximum Depth of Cut, Socket Head Cap Screw, External

Cutting Direction      :      Left Hand
Head Length      :      1.8 in
Insert Compatibility      :      GI..
Insert Seat Size      :      0.212 in
Internal or External      :      External
Maximum Depth of Cut      :      1.18 in
Minimum Groove Width      :      0.236 in
Overall Length      :      6 in
Screw Type      :      Socket Head Cap
Series      :      CUT-GRIP
Shank Size      :      1 in H x 1 in W
Toolholder Type      :      GHGL
  • 0.89 in insert to shank reference
  • 0.212 in seat width
  • 2.36 in parting diameter
  • 1/4 in maximum groove width
  • Without coolant hole
  • ISO Code: GHGL 25.4-630
