ISCAR 2301286

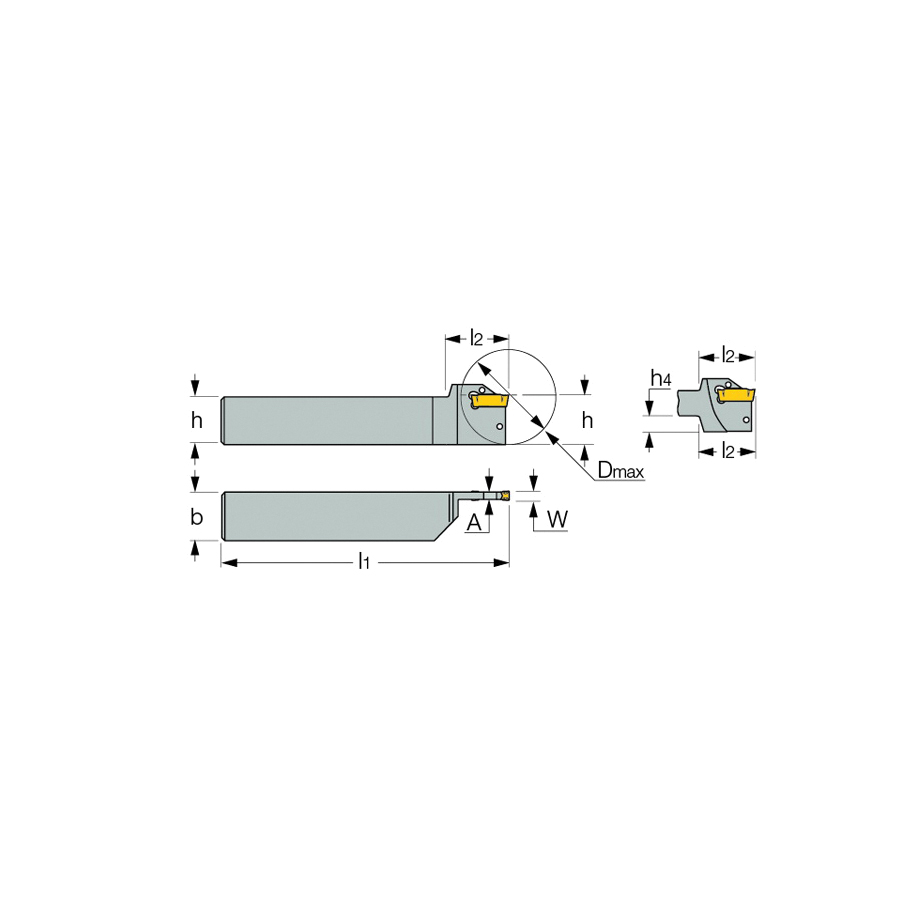

Iscar 2301286 DO-GRIP Integral Shank Indexable Grooving Toolholder, Insert Compatibility: DG. 1.., DG. 3.., 0.1 in Insert Seat, Right Hand Cutting, 0.118 in W Min Groove, External, 3/4 in H x 3/4 in W Shank, DGTR Toolholder

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR 2301286
  • MPN: 2301286
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Iscar Indexable Grooving Toolholder, Integral Shank, Series: DO-GRIP, Insert Compatibility: DG. 1.., DG. 3.., DGTR Toolholder Type, 1.1 in Head Length, 4-1/2 in Overall Length, 3/4 in H x 3/4 in W Shank, 0.1 in Insert Seat, Right Hand Cutting Direction, 0.118 in Minimum Groove Width, External Internal or External

Cutting Direction      :      Right Hand
Head Length      :      1.1 in
Insert Compatibility      :      DG. 1.., DG. 3..
Insert Seat Size      :      0.1 in
Internal or External      :      External
Minimum Groove Width      :      0.118 in
Overall Length      :      4-1/2 in
Series      :      DO-GRIP
Shank Size      :      3/4 in H x 3/4 in W
Toolholder Type      :      DGTR
Type      :      Integral Shank
  • 0.098 in seat width
  • 1.38 in parting diameter
  • 1/8 in maximum groove width
  • Without coolant hole
  • ISO Code : DGTR 19-3
