Iscar 2300514 ISCAR 2300514
  1. pin-int

ISCAR 2300514

Iscar 2300514 SELF-GRIP Indexable Cut-Off Blade, Double End End, 0.0945 in W SGFH Blade, 2.7 to 3.53 mm W Insert, Insert Compatibility: GF.. 3

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR 2300514
  • MPN: 2300514
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

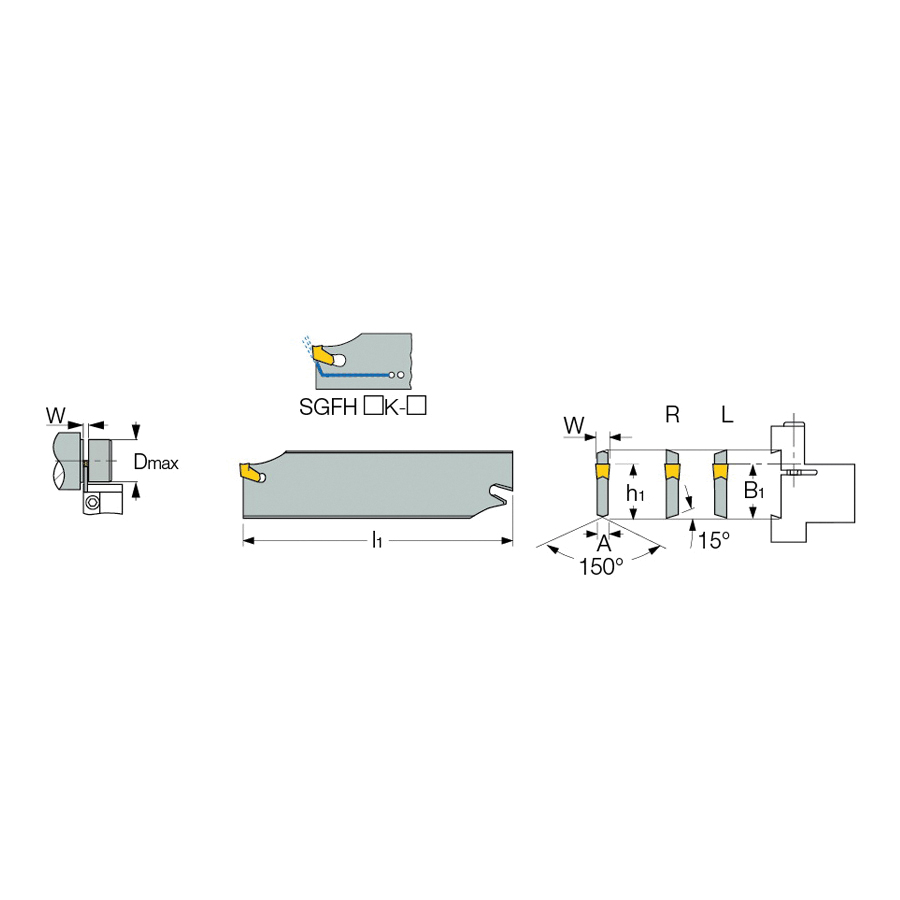

Iscar Indexable Cut-Off Blade, Series: SELF-GRIP, SGFH, 26 mm Blade Height, 2.4 mm Blade Thickness, 0.0945 in Blade Width, Double End Single or Double End, 21.4 mm Center Height, 110 mm Overall Length, Right Hand Cutting, 2.7 to 3.53 mm Insert Width, Insert Compatibility: GF.. 3, 2.4 Insert Seat

Blade Height      :      26 mm
Blade Style      :      SGFH
Blade Thickness      :      2.4 mm
Blade Width      :      0.0945 in
Center Height      :      21.4 mm
Cutting Direction      :      Right Hand
Insert Compatibility      :      GF.. 3
Insert Seat Size      :      2.4
Insert Width      :      2.7 to 3.53 mm
Overall Length      :      110 mm
Series      :      SELF-GRIP
Single or Double End      :      Double
  • Blades with coolant holes are designated with "K"
