OSG 2991001

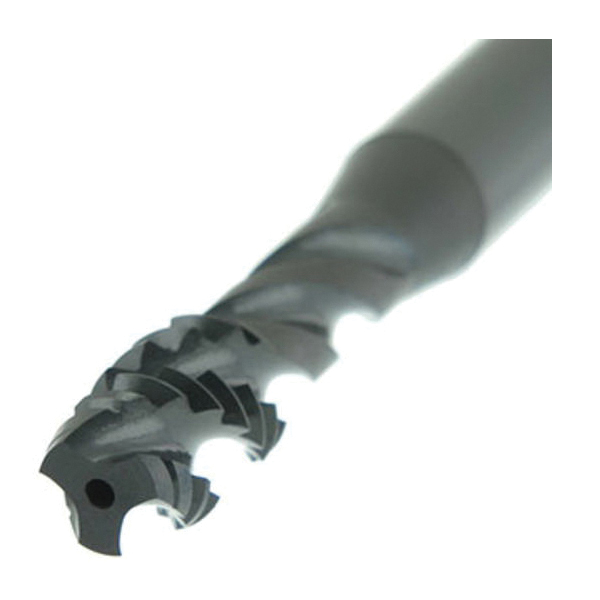

HY-PRO® 2991001 Premium Spiral Flute Tap, Right Hand Cutting, M6-1 Thread, D5 Thread Limit, 2.5P-3P Modified Bottoming Chamfer, 3 Flutes, Oxide Treated, HSSE
- Manufacturer: OSG
- Brand Name: HY-PRO®
- Part Number: OSG 2991001
- MPN: 2991001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 1/PK
-
Price:
HY-PRO® is the original "Do it All" premium spiral flute tap for a wide range of materials.
HY-PRO® Spiral Flute Tap, Premium, Series: 299, Measurement System: Metric, Size M6, M6-1, 2.5P-3P Modified Bottoming Chamfer, 3 Flutes, HSSE, Oxide Treated, Right Hand Cutting, 8 mm Thread Length, 63 mm Overall Length, 6.47 mm Shank Dia, 38 mm Shank Length, D5 Thread Limit, Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel Material Application, Through Coolant (Yes/No): No
| Chamfer Type | : | 2.5P-3P Modified Bottoming |
| Cutting Direction | : | Right Hand |
| Finish/Coating | : | Oxide Treated |
| Material Application | : | Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel |
| Material | : | HSSE |
| Measurement System | : | Metric |
| Number of Flutes | : | 3 |
| Overall Length | : | 63 mm |
| Series | : | 299 |
| Shank Diameter | : | 6.47 mm |
| Shank Length | : | 38 mm |
| Size | : | M6 |
| Thread Length | : | 8 mm |
| Thread Limit | : | D5 |
| Thread Size | : | M6-1 |
| Through Coolant (Yes/No) | : | No |
| Type | : | Premium |
- HSSE material - increased wear resistance
- Bright, steam oxide surface treatment - increases mechanical lubricity
- Slow spiral - efficient chip evacuation
