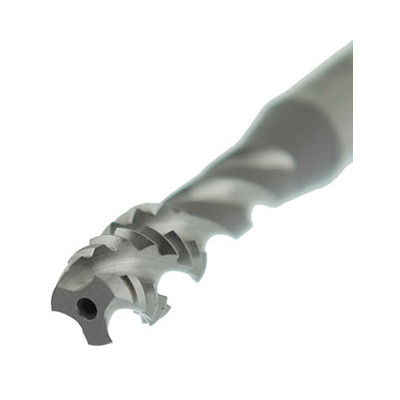

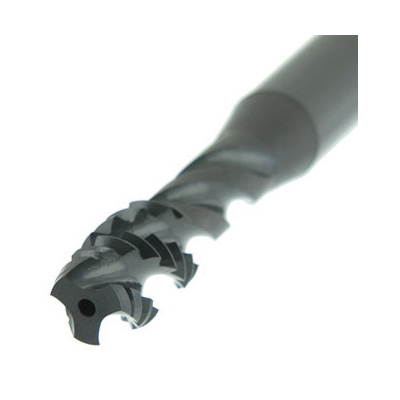

HY-PRO® 2932401 HY-PRO® 290 Spiral Flute Tap, Right Hand Cutting, 1/2-13 Thread, H3 Thread Limit, 2.5P-3P Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Oxide Treated, HSS-E
- Manufacturer: OSG
- Brand Name: HY-PRO®
- Part Number: OSG 2932401
- MPN: 2932401
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 1/PK
-
Price:
Taps are used to cut screw threads on the inside surfaces of holes, creating the female half (nut) of the screw. High precision is of vital importance, particularly in areas such as automobile engines, which require precision screws. OSG offers a lineup of taps with diameters in various sizes and with specifications suitable for a wide variety of uses.
HY-PRO® Spiral Flute Tap, Series: HY-PRO® 290, Measurement System: Imperial, UNC, 1/2-13, 2.5P-3P Modified Bottoming Chamfer, 3 Flutes, HSS-E, Oxide Treated, Right Hand Cutting, 0.614 in Thread Length, 3.37 in Overall Length, 0.367 in Shank Dia, Right Hand Flute Direction, H3 Thread Limit, Steel, Stainless Steel, Tool Steel, Die Steel and Nickel Alloys Material Application, No Through Coolant (Yes/No)
| Chamfer Type | : | 2.5P-3P Modified Bottoming |
| Cutting Direction | : | Right Hand |
| Finish/Coating | : | Oxide Treated |
| Flute Direction | : | Right Hand |
| Material Application | : | Steel, Stainless Steel, Tool Steel, Die Steel and Nickel Alloys |
| Material | : | HSS-E |
| Measurement System | : | Imperial |
| Number of Flutes | : | 3 |
| Overall Length | : | 3.37 in |
| Series | : | HY-PRO® 290 |
| Shank Diameter | : | 0.367 in |
| Thread Length | : | 0.614 in |
| Thread Limit | : | H3 |
| Thread Size | : | 1/2-13 |
| Thread Standard | : | UNC |
| Through Coolant (Yes/No) | : | No |
- Spiral flute taps utilize a helical flute
- The original 'Do It All' spiral flute tap, good for all materials
