Semi-premium taps made from premium high speed steel for general purpose tapping applications.

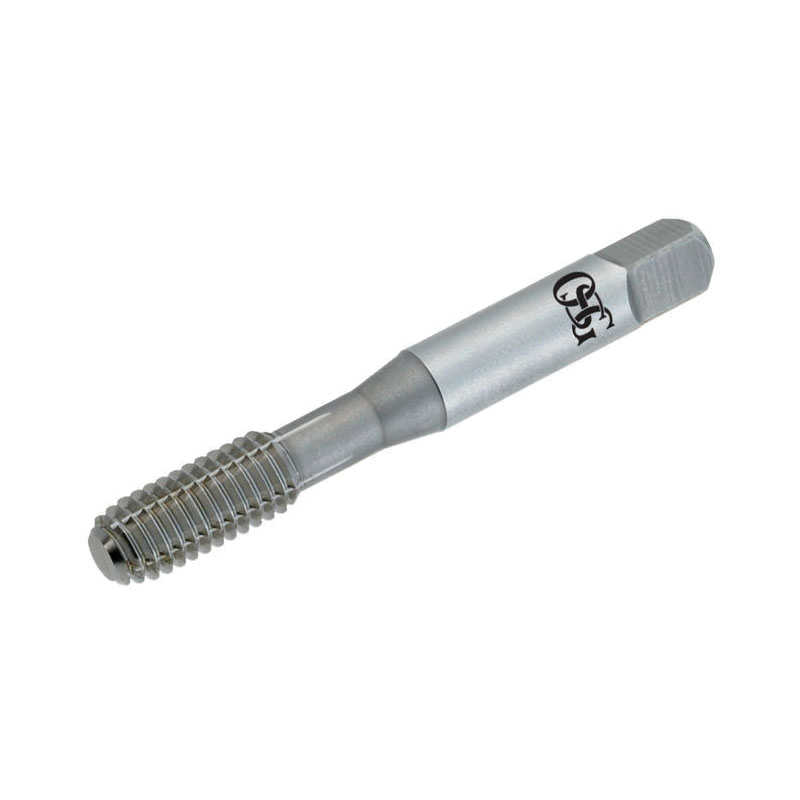

HY-PRO® Thread Forming Tap, Class of Fit Nu-Roll Semi-Premium, Series: 285/NRT, Measurement System: Imperial, #6-32, UNC, 1.5P-2P Bottoming Chamfer, 11/16 in Thread Length, 2 in Overall Length, Class of Fit: 2B, 0.141 in Shank Dia, 0.188 in L x 0.11 in W Square Size, HSS, TiN
| Chamfer Type | : | 1.5P-2P Bottoming |
| Class of Fit | : | 2B |
| Finish/Coating | : | TiN |
| Material | : | HSS |
| Measurement System | : | Imperial |
| Overall Length | : | 2 in |
| Series | : | 285/NRT |
| Shank Diameter | : | 0.141 in |
| Square Size | : | 0.188 in L x 0.11 in W |
| Thread Length | : | 11/16 in |
| Thread Size | : | #6-32 |
| Thread Standard | : | UNC |
| Type | : | Class of Fit Nu-Roll Semi-Premium |
- 2B class of fits - eliminates the need to choose the correct thread limit
- Without through coolant
