BONDO 262

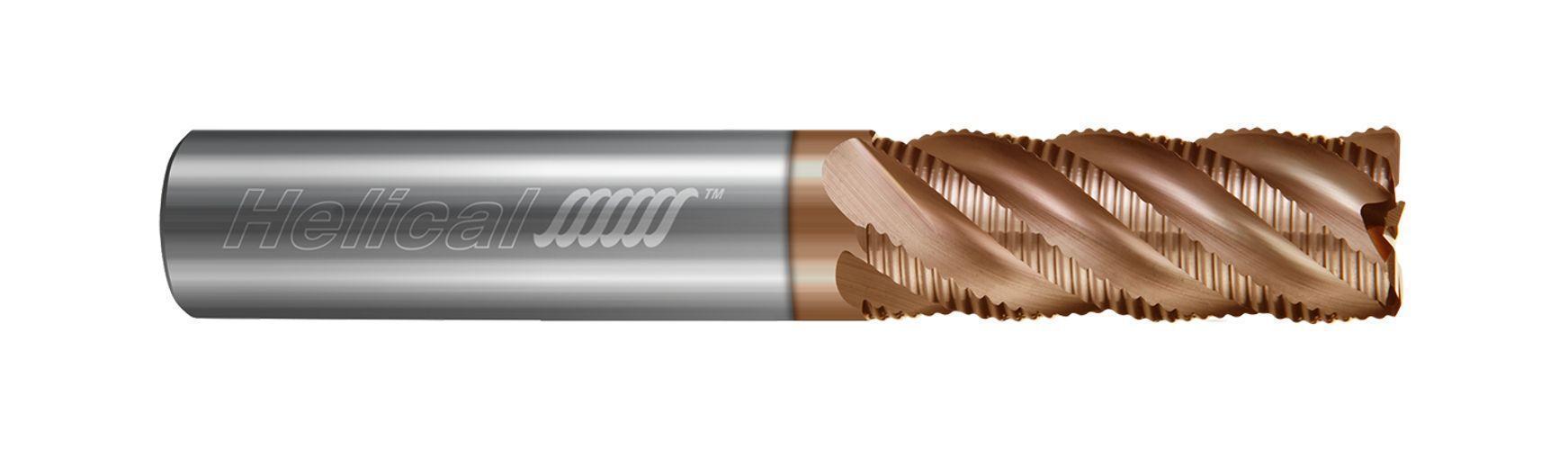

Helical Solutions 88956 H45AL-2 Center Cut Multi-Flute End Mills, 0.5 in Dia Cutter, 0.04 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 4 in OAL, Tplus

  • Manufacturer: Helical Solutions
  • Brand Name: Helical Solutions
  • Part Number: BONDO 262
  • MPN: 88956
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Helical Solutions, 88956, End Mills, Center Cut Multi-Flute, Series: H45AL-2, 0.5 in Diameter Cutter, 0.04 in Corner Radius, 4 in Overall Length, 1.625 in Length of Cut, 5 Flutes, Upcut Flute, 0.5 in Shank Diameter, Right Hand Cutting Direction, Cylindrical Shank, 3.719 in Shank Length, Solid Carbide, Tplus

Corner Radius      :      0.04 in
Cutter Diameter      :      0.5 in
Cutting Direction      :      Right Hand
Finish      :      Tplus
Flute Type      :      Upcut
Length of Cut      :      1.625 in
Material      :      Solid Carbide
Number of Flutes      :      5
Overall Length      :      4 in
Series      :      H45AL-2
Shank Diameter      :      0.5 in
Shank Length      :      3.719 in
Shank Type      :      Cylindrical
Type      :      Center Cut Multi-Flute
  • Offers proven performance and extended tool life in stainless steels, high temp alloys and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels and cast iron
  • Engineered with staggered low profile edge geometry for chip control and minimized cutting forces
  • Available in 4 flute and 5 flute options
  • Center Cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid Carbide
