HRV BVT1800-C3

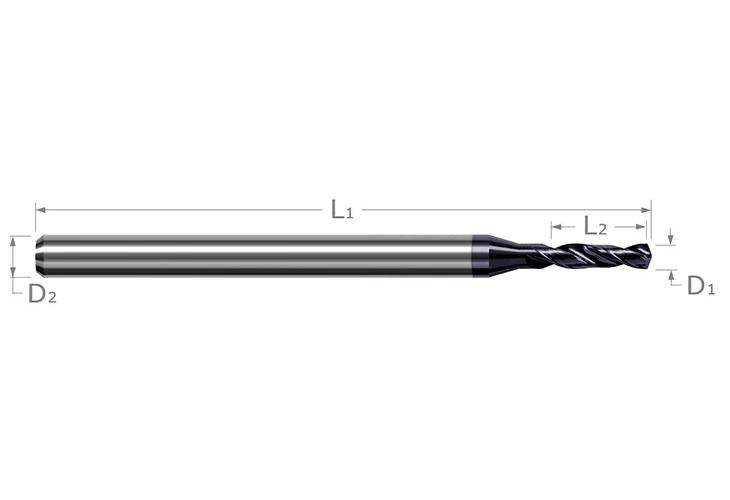

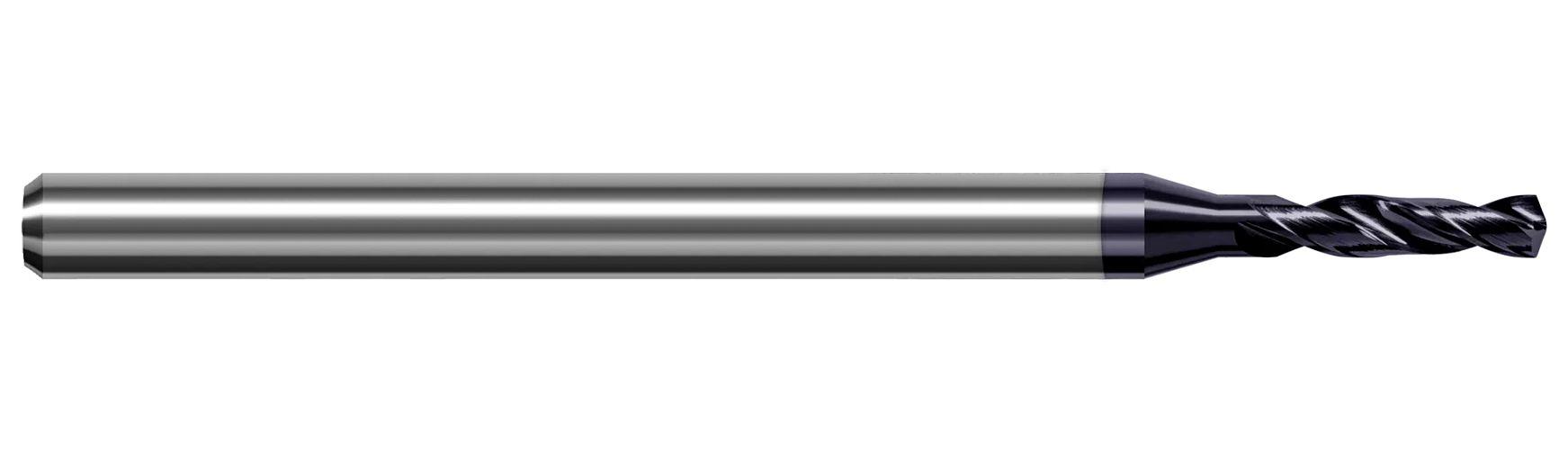

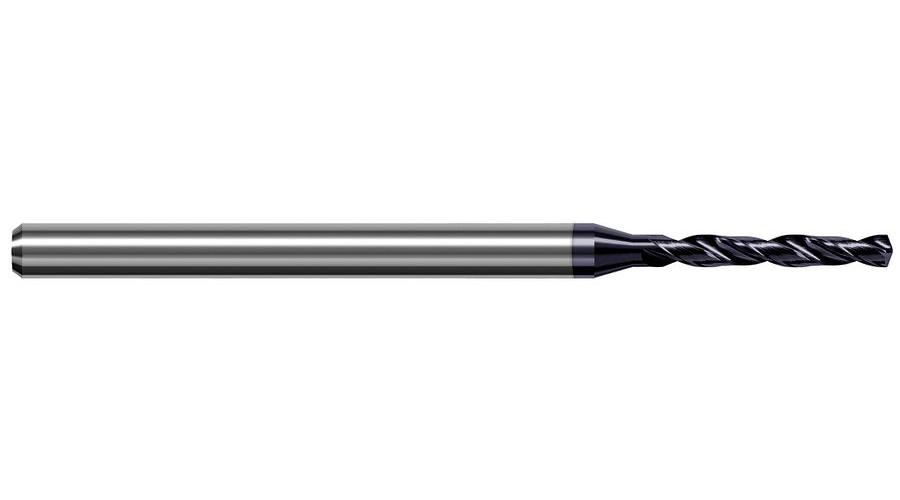

Harvey Tool BVT1800-C3 High Performance Miniature Drill, 4.572 mm Drill - Metric, 0.18 in Drill - Decimal Inch, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV BVT1800-C3
- MPN: BVT1800-C3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, BVT1800-C3, Miniature Drill, High Performance, Metric, 4.572 mm Drill - Metric, 0.18 in Drill - Decimal Inch, 2.95 in Overall Length, 2 Flutes, Helical Flute, 1.181 in Flute Length, 6 mm Shank, Cylindrical Shank, 140 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, AlTiN, Applicable Materials: Cast Iron/Steel/Stainless Steel
| Applicable Materials | : | Cast Iron/Steel/Stainless Steel |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Solid Carbide |
| Drill Diameter Measurement System | : | Metric |
| Drill Size - Decimal Inch | : | 0.18 in |
| Drill Size - Metric | : | 4.572 mm |
| Finish | : | AlTiN |
| Flute Length | : | 1.181 in |
| Flute Type | : | Helical |
| Material | : | Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 2.95 in |
| Point Angle | : | 140 deg |
| Point Type | : | Drill |
| Shank Size | : | 6 mm |
| Shank Type | : | Cylindrical |
| Type | : | High Performance |
- Specialized flute shape for improved chip evacuation and maximum rigidity
- AlTiN coated for improved lubricity and heat resistance
- H6 Shank Tolerance for high precision tool holders
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_Tool_29135_Catalog.pdf
