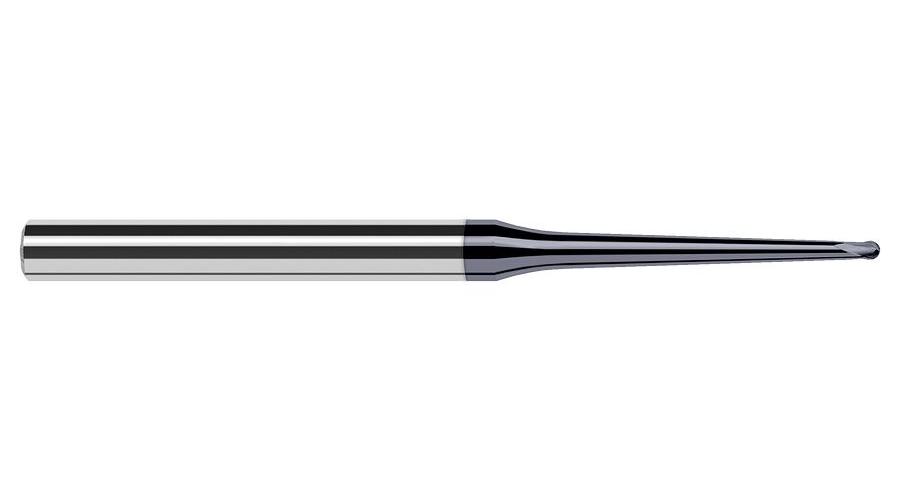

Harvey Tool 998703-C6 Type I Center Cut Tapered Reach End Mill, 0.031 in Dia Cutter, 0.025 in Length of Cut, (2) Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 998703-C6
- MPN: 998703-C6
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:

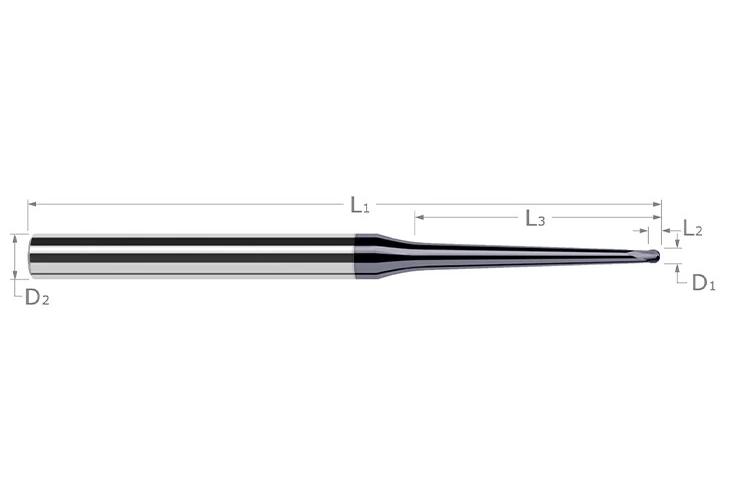

Harvey Tool, 998703-C6, End Mill, Type I Center Cut Tapered Reach, 0.031 in Diameter Cutter, 2-1/2 in Overall Length, 0.025 in Length of Cut, 2 Flutes, Upcut Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
| Cutter Diameter | : | 0.031 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN |
| Flute Type | : | Upcut |
| Helix Angle | : | 20 deg |
| Length of Cut | : | 0.025 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 1/4 in |
| Shank Type | : | Cylindrical |
| Type | : | Type I Center Cut Tapered Reach |
- Designed to profile and finish hardened tool, die, and mold steels 46Rc to 68Rc
- Solid tapered neck for increased rigidity and strength
- Select carbide grade for improved edge retention
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Geometry includes stub flute, large rigid core diameter and eccentric relief
- Increased shank diameter to maintain strength and stiffness
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Neck Angle 0.5
- Tapered Reach 0.0930 in (3/32)
- Overall Reach 0.7570 in
- Profile Ball
