Harvey Tool 966308 HRV 966308
  1. pin-int

HRV 966308

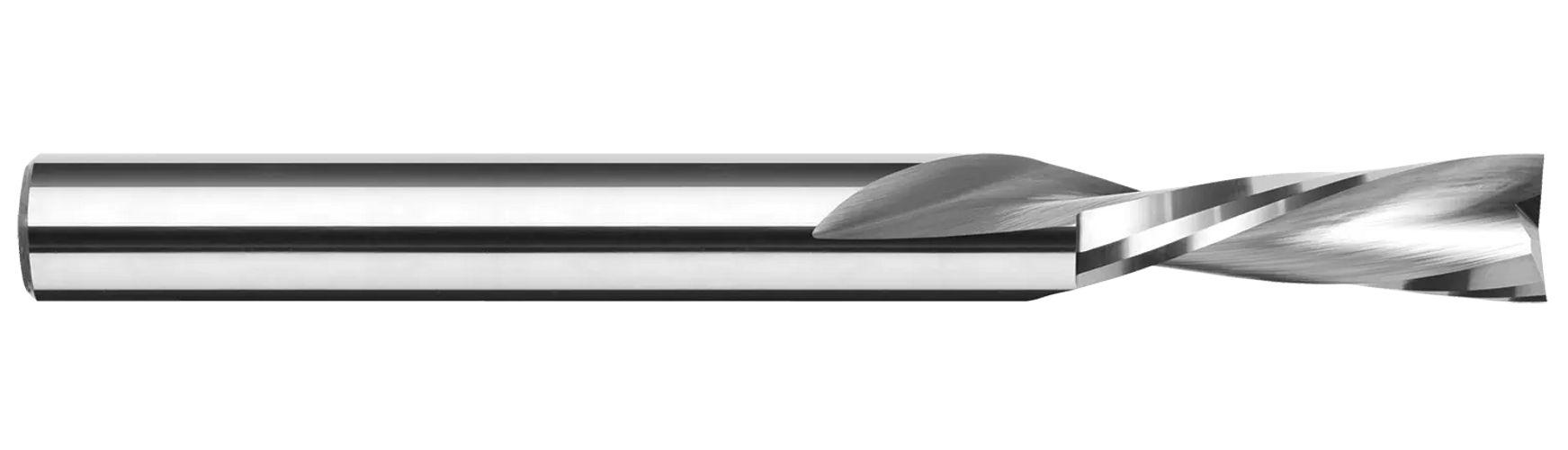

Harvey Tool 966308 Slow Helix Downcut End Mill, 0.125 in Dia Cutter, 0.188 in Length of Cut, (2) Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 966308
  • MPN: 966308
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 966308, End Mill, Slow Helix Downcut, 0.125 in Diameter Cutter, 1-1/2 in Overall Length, 0.188 in Length of Cut, 2 Flutes, Downcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, 1.312 in Shank Length, Solid Carbide, Uncoated

Cutter Diameter      :      0.125 in
Cutting Direction      :      Right Hand
Finish      :      Uncoated
Flute Type      :      Downcut
Helix Angle      :      20 deg
Length of Cut      :      0.188 in
Material      :      Solid Carbide
Number of Flutes      :      2
Overall Length      :      1-1/2 in
Shank Diameter      :      1/8 in
Shank Length      :      1.312 in
Shank Type      :      Cylindrical
Type      :      Slow Helix Downcut
  • Prevents fraying and chip out of top of workpiece
  • Prevents lifting on vacuum tables
  • 2 Left hand spiral, right hand cut flutes
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • 2 Flute design improves rigidity for better accuracy, less deflection and longer tool life
  • Applicable Materials are Aluminum, Wood, Composites
  • Profile Square
