HRV 972312-C3

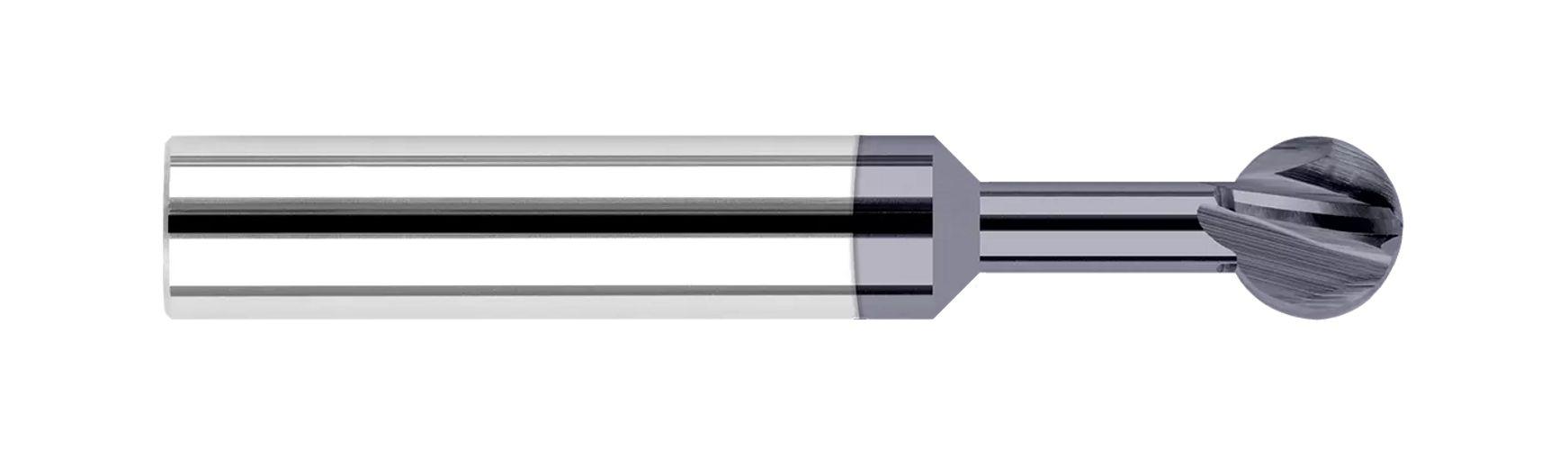

Harvey Tool 952312-C3 Center Cut Undercutting End Mill, 0.1875 in Dia Cutter, 0.174 in Length of Cut, (4) Flutes, 3/16 in Dia Shank, 2 in OAL, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 972312-C3
- MPN: 952312-C3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 952312-C3, Undercutting End Mill, Center Cut, 0.1875 in Diameter Cutter, 2 in Overall Length, 0.174 in Length of Cut, 4 Flutes, Upcut Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 10 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
| Cutter Diameter | : | 0.1875 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN |
| Flute Type | : | Upcut |
| Helix Angle | : | 10 deg |
| Length of Cut | : | 0.174 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 2 in |
| Shank Diameter | : | 3/16 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut |
- 300 deg Spherical Ball
- Designed for undercutting, deburring, and multi-axis machining
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Neck Diameter 0.0820 in
- Neck Length 0.7500 in (3/4)
- Wrap Angle 300
- Profile Spherical
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_Tool_10112_Catalog.pdf
