HRV 938210

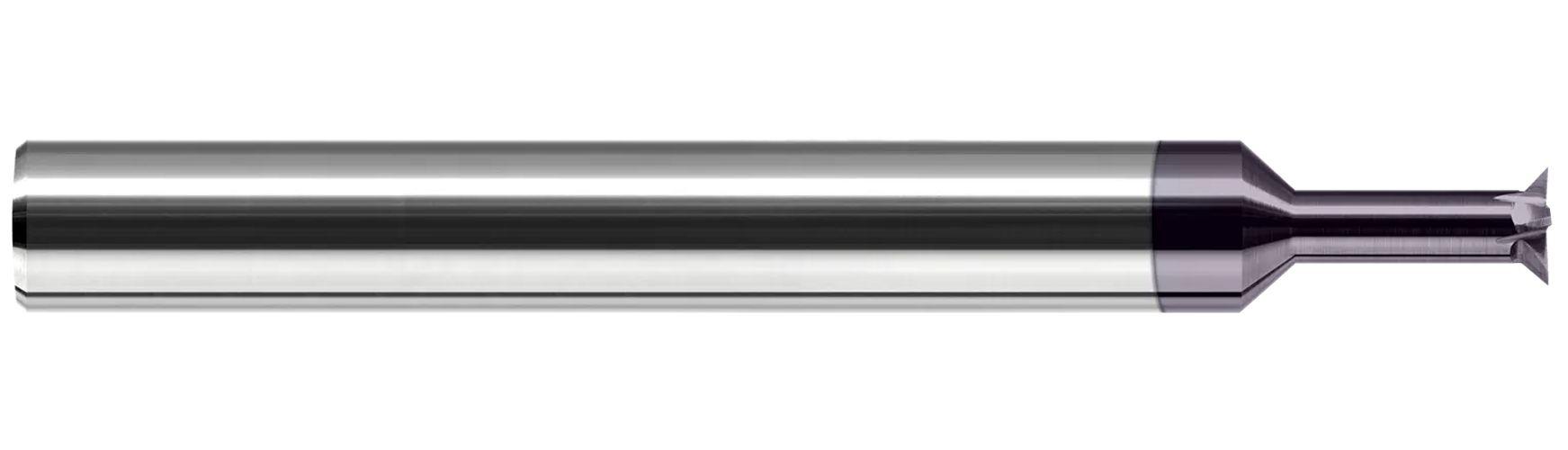

Harvey Tool 938210 Chamfer Cutter, 0.115 in Dia Cutter Head, 1-1/2 in OAL, Straight Shank, 0.02 in W Chamfer
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 938210
- MPN: 938210
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 938210, Chamfer Cutter, 0.115 in Diameter Cutter Head, 90 deg Included Angle, 0.02 in Chamfer Width, 1-1/2 in Overall Length, Straight Shank, 1/8 in Shank Diameter, Right Hand Cutting Direction, Chamfer Threaded End Style, 4 Flutes, Solid Carbide, Uncoated
| Chamfer Width | : | 0.02 in |
| Cutter Head Diameter | : | 0.115 in |
| Cutting Direction | : | Right Hand |
| End Style | : | Chamfer Threaded |
| Finish | : | Uncoated |
| Included Angle | : | 90 deg |
| Material | : | Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 1-1/2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Straight |
- Low profile design and greater radial projection ideal for generating chamfered features on the backside of small holes or slots
- Decrease costs by avoiding time-consuming changes to part set-ups
- Slightly undersized to fit in common hole sizes
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Axial Length Of Cut 0.0200 in
- Neck Diameter 0.0680 in
- Neck Length 0.3750 in (3/8)
- Profile Back Chamfer
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_Tool_29135_Catalog.pdf
