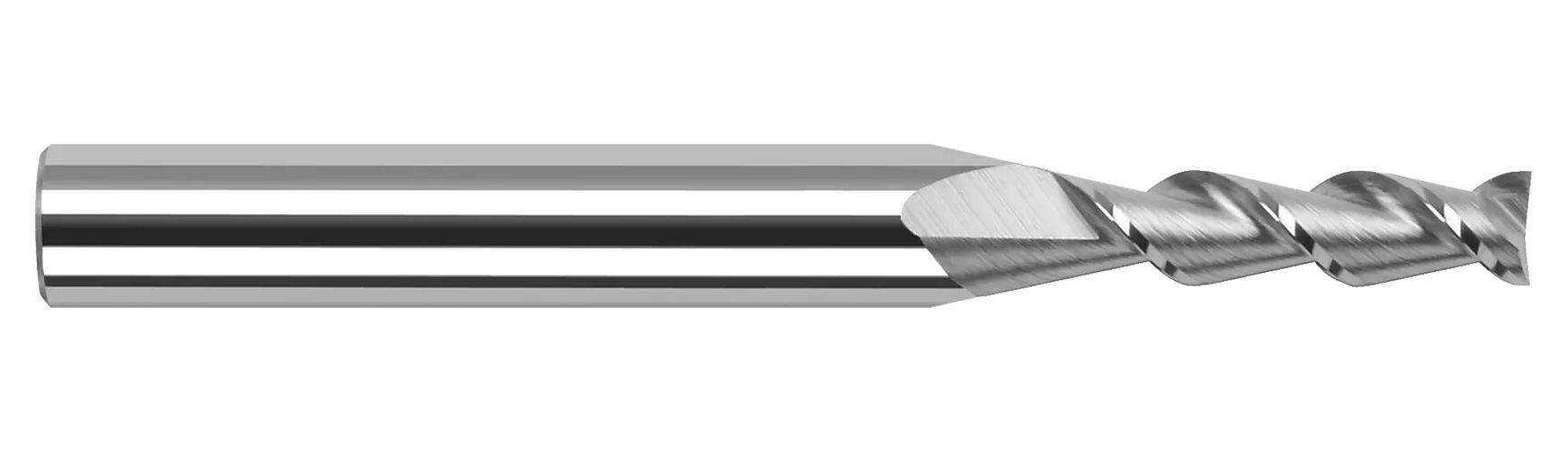

Harvey Tool 932078 High Helix End Mill, 0.078 in Dia Cutter, 13/32 in Length of Cut, (2) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, Uncoated
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 932078
- MPN: 932078
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 932078, High Helix End Mill, 0.078 in Diameter Cutter, 2-1/2 in Overall Length, 13/32 in Length of Cut, 2 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
| Cutter Diameter | : | 0.078 in |
| Cutting Direction | : | Right Hand |
| Finish | : | Uncoated |
| Flute Type | : | Helical |
| Helix Angle | : | 45 deg |
| Length of Cut | : | 13/32 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut High Helix |
- 2 flute and 3 flute, high helix design improves results in aluminum and other non-ferrous applications
- 45 deg helix for faster chip removal and better finish
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Profile Square
