HRV 915962-C6

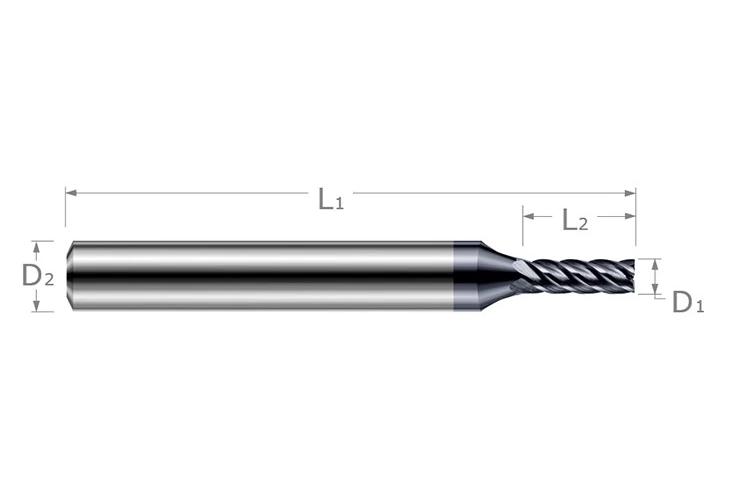

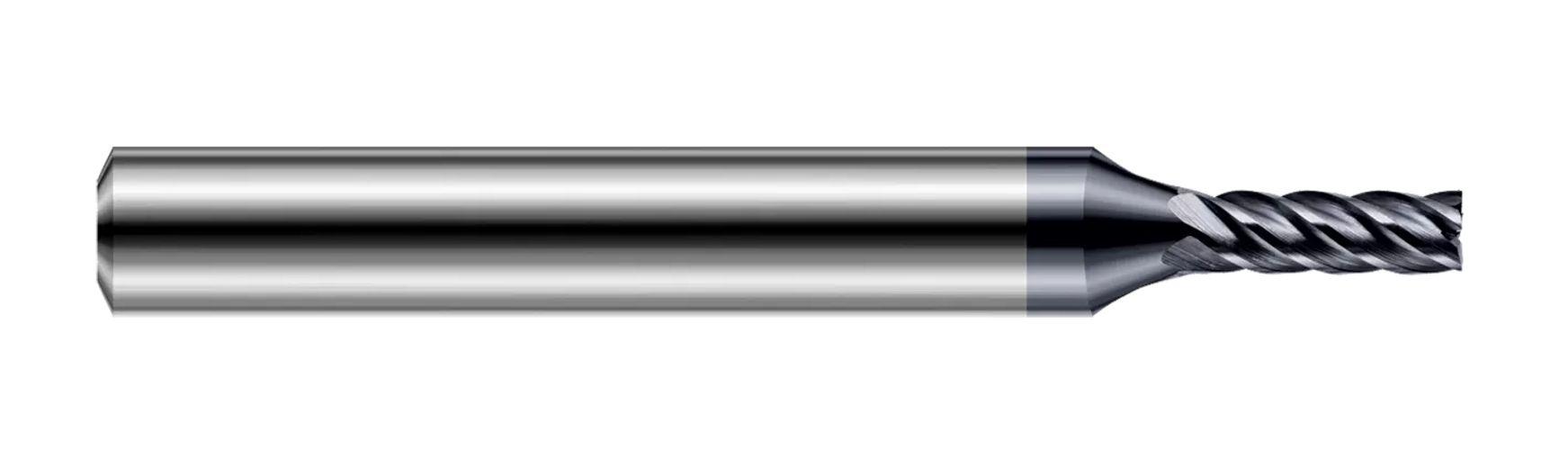

Harvey Tool 915962-C6 Center Cut Variable Helix End Mill, 0.062 in Dia Cutter, 0.186 in Length of Cut, (5) Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 915962-C6
- MPN: 915962-C6
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 915962-C6, End Mill, Center Cut Variable Helix, 0.062 in Diameter Cutter, 2-1/2 in Overall Length, 0.186 in Length of Cut, 5 Flutes, Helical Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
| Cutter Diameter | : | 0.062 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN |
| Flute Type | : | Helical |
| Helix Angle | : | 37 deg |
| Length of Cut | : | 0.186 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 5 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 1/4 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut Variable Helix |
- Designed to mill hardened tool, die, and mold steels up to 55Rc
- Also excellent for stainless steel, inconel, titanium, and other high temperature alloys
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Increased shank diameter to maintain strength and stiffness
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Profile Square
