Contact 800-639-2901
HRV 897208

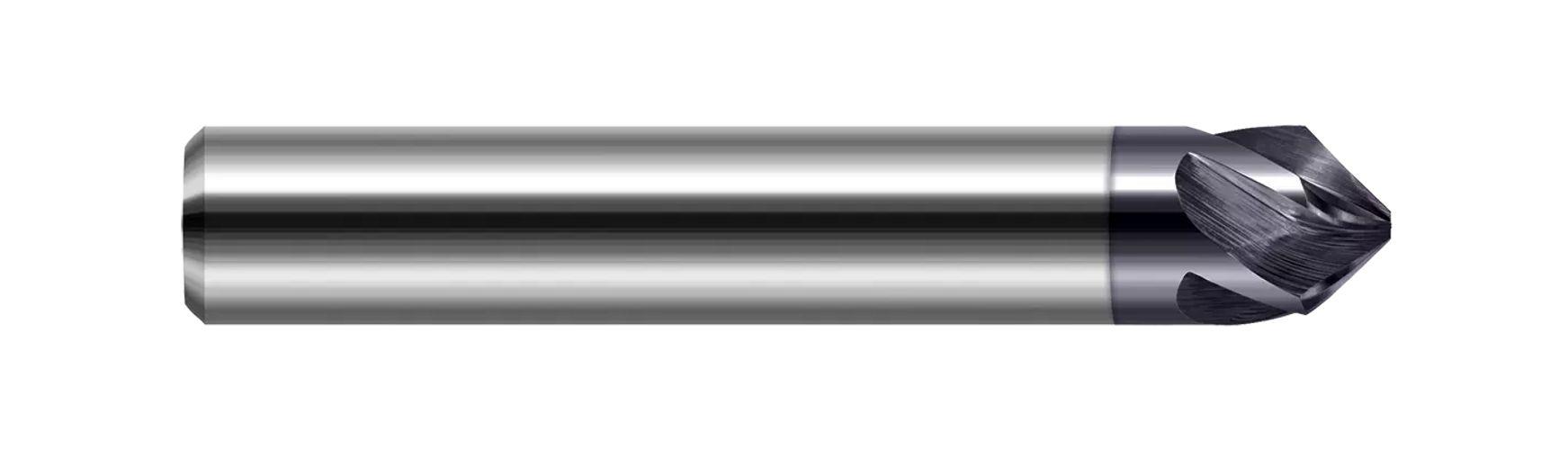

Harvey Tool 897208 Type II Helical Flute Chamfer Cutter, 1/8 in Dia Cutter Head, 90 deg Included Angle, 1-1/2 in OAL, Solid Carbide, Uncoated
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 897208
- MPN: 897208
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 897208, Chamfer Cutter, Type II Helical Flute, 1/8 in Diameter Cutter Head, 90 deg Included Angle, 1-1/2 in Overall Length, 3 Flutes, Flat End Style, Cylindrical Shank, 1/8 in Shank Diameter, Right Hand Cutting Direction, 1/8 in Diameter Cutting, 0.043 in Length of Cut, Solid Carbide, Uncoated
| Cutter Head Diameter | : | 1/8 in |
| Cutting Diameter | : | 1/8 in |
| Cutting Direction | : | Right Hand |
| End Style | : | Flat |
| Finish | : | Uncoated |
| Included Angle | : | 90 deg |
| Length of Cut | : | 0.043 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 1-1/2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Type II Helical Flute |
- Specialized helical flute design for superior performance
- Free cutting action provides excellent surface finish and chip evacuation
- Offered in Type I pointed and Type II flat end (non-cutting) styles
- 2, 3, 4, and 5, flute options
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Angle Per Side 45
- Tip 0.0400 in
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_Tool_10112_Catalog.pdf
