HRV 891145-C3

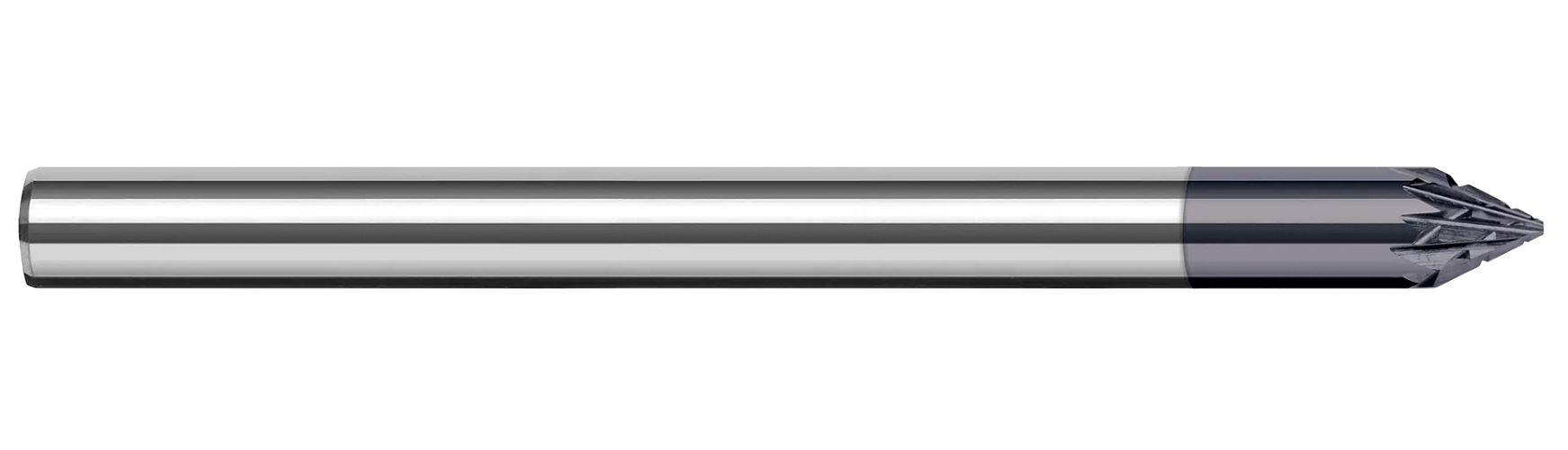

Harvey Tool 891145-C3 Deburring Chamfer Cutter, 3/16 in Dia Cutter Head, 90 deg Included Angle, 2-1/2 in OAL, Solid Carbide, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 891145-C3
- MPN: 891145-C3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 891145-C3, Chamfer Cutter, Deburring, 3/16 in Diameter Cutter Head, 90 deg Included Angle, 2-1/2 in Overall Length, 12 Flutes, Flat End Style, Cylindrical Shank, 3/16 in Shank Diameter, Right Hand/Left Hand Cutting Direction, 3/16 in Diameter Cutting, 0.088 in Length of Cut, Solid Carbide, AlTiN
| Cutter Head Diameter | : | 3/16 in |
| Cutting Diameter | : | 3/16 in |
| Cutting Direction | : | Right Hand/Left Hand |
| End Style | : | Flat |
| Finish | : | AlTiN |
| Included Angle | : | 90 deg |
| Length of Cut | : | 0.088 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 12 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 3/16 in |
| Shank Type | : | Cylindrical |
| Type | : | Deburring |
- End mill tolerances with burr-style geometry
- Deburr in your CNC machine with these high precision burs held to end mill tolerances
- Stop scrapping expensive parts due to handheld operator errors
- High flute count allows for increased feeds which reduces cycle time
- Achieve better finish than with milling type cutters
- Tight end mill tolerances allow use of standard programming and tool paths
- Cone shaped burs are effective in removing burrs and/or adding a small controlled edge break with superior finish
- Double cut style flute pattern
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Angle Per Side 45
- Right Hand Teeth 12
- Left Hand Teeth 6
- Minor Diameter 0.0120 in (0.3 mm)
