Harvey Tool 778024-C3 HRV 738024-C3
  1. pin-int

HRV 738024-C3

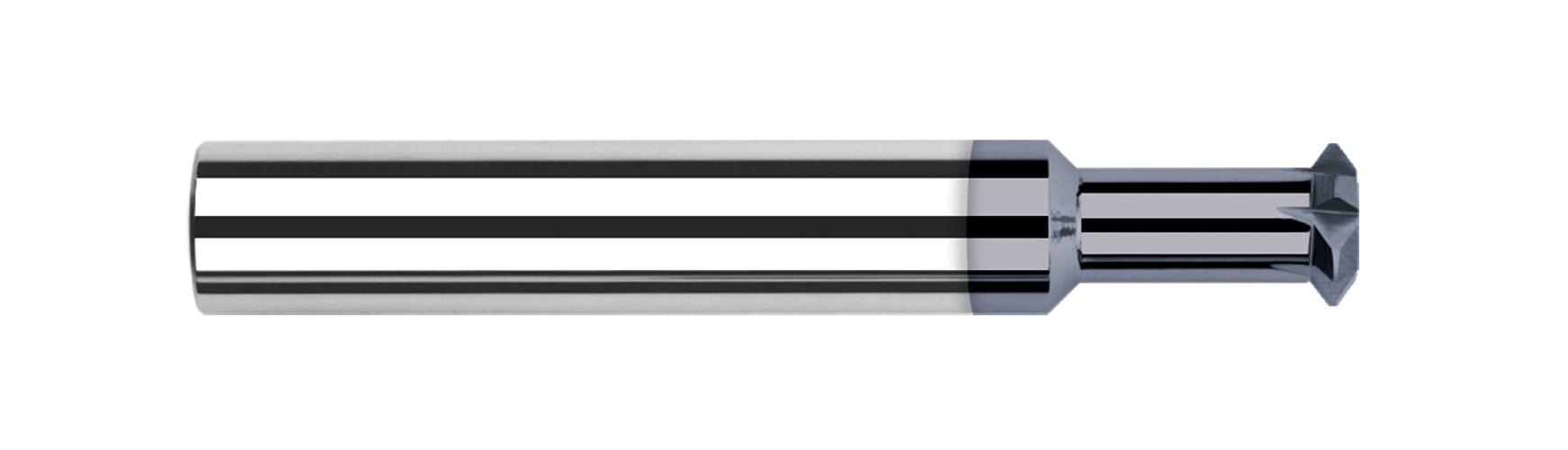

Harvey Tool 778024-C3 Long Reach Reduced Neck Double Angle Shank Cutter, Shank Connection, 60 deg, 3/8 in Dia Cutter, 0.082 in W Cutting, Right Hand Cutting, Solid Carbide

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 738024-C3
  • MPN: 778024-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 778024-C3, Double Angle Shank Cutter, Long Reach Reduced Neck, 3/8 in Diameter Cutter, 0.082 in Cutting Width, 6 Teeth, 60 deg Angle, 3/8 in Shank Diameter, Shank Connection, 2-1/2 in Overall Length, Right Hand Cutting Direction, Solid Carbide, AlTiN

Angle      :      60 deg
Connection Type      :      Shank
Cutter Diameter      :      3/8 in
Cutting Direction      :      Right Hand
Cutting Width      :      0.082 in
Finish      :      AlTiN
Material      :      Solid Carbide
Number of Teeth      :      6
Overall Length      :      2-1/2 in
Shank Diameter      :      3/8 in
Shank Type      :      Cylindrical
Type      :      Long Reach Reduced Neck
  • Flat on tip for improved strength and wear resistance
  • Reduced neck for long reach machining
  • Applicable Materials are Cast Iron, Steel, Stainless Steel, Wood
  • Tip Flat 0.0100 in
  • Neck Diameter 0.2500 in (1/4)
  • Neck Length 0.5000 in (1/2)
  • Flutes 6
