HRV 76825

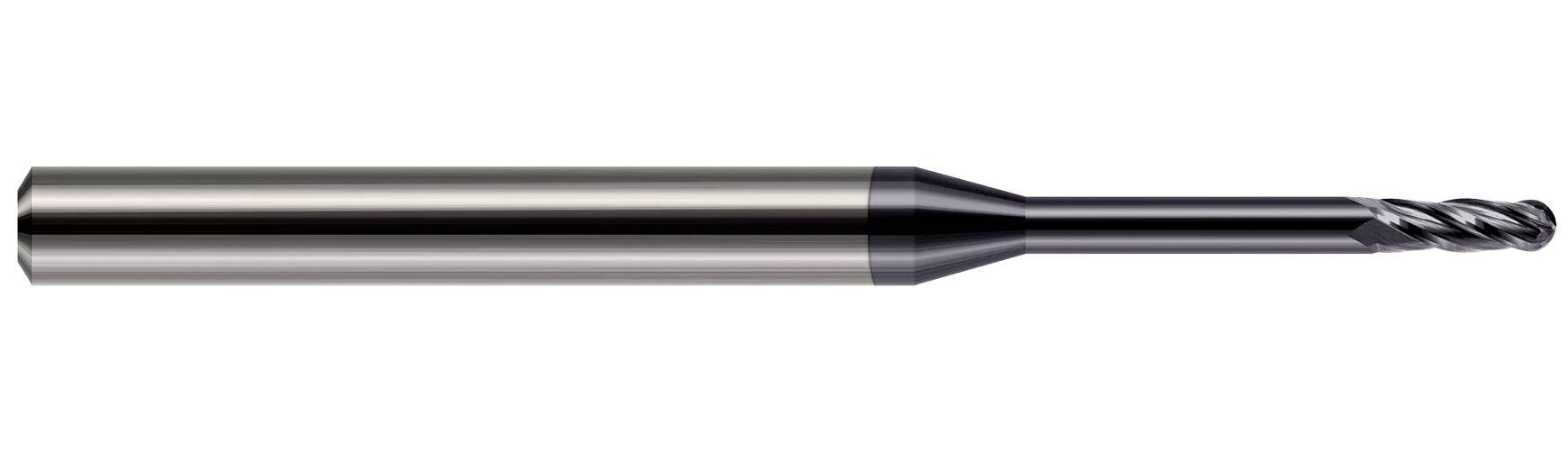

Harvey Tool 76825 Center Cut Standard Length Miniature End Mill, 0.025 in Dia Cutter, 0.075 in Length of Cut, (4) Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 76825
- MPN: 76825
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:

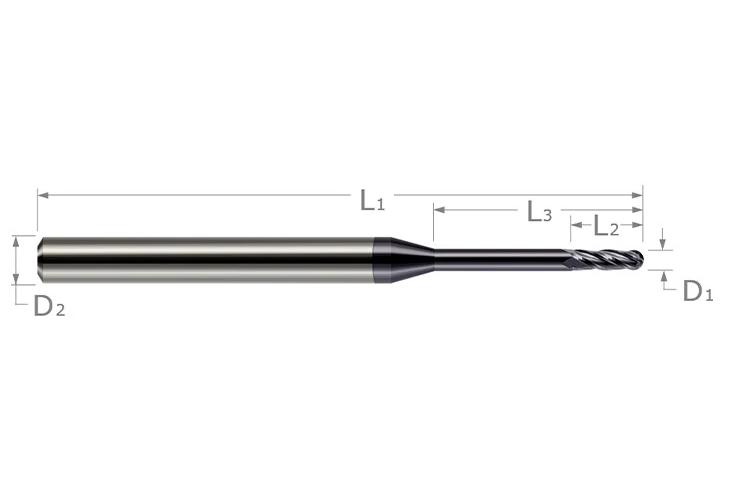

Harvey Tool, 76825, Miniature End Mill, Center Cut Standard Length, 0.025 in Diameter Cutter, 1-1/2 in Overall Length, 0.075 in Length of Cut, 4 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
| Cutter Diameter | : | 0.025 in |
| Cutting Direction | : | Right Hand |
| Finish | : | Uncoated |
| Flute Type | : | Upcut |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 0.075 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 1-1/2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut Standard Length |
- Length of cut = 3 x diameter
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.2130 in
- Reach Multiple (8x)
- Profile Ball
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_Tool_10112_Catalog.pdf
