HRV 71055

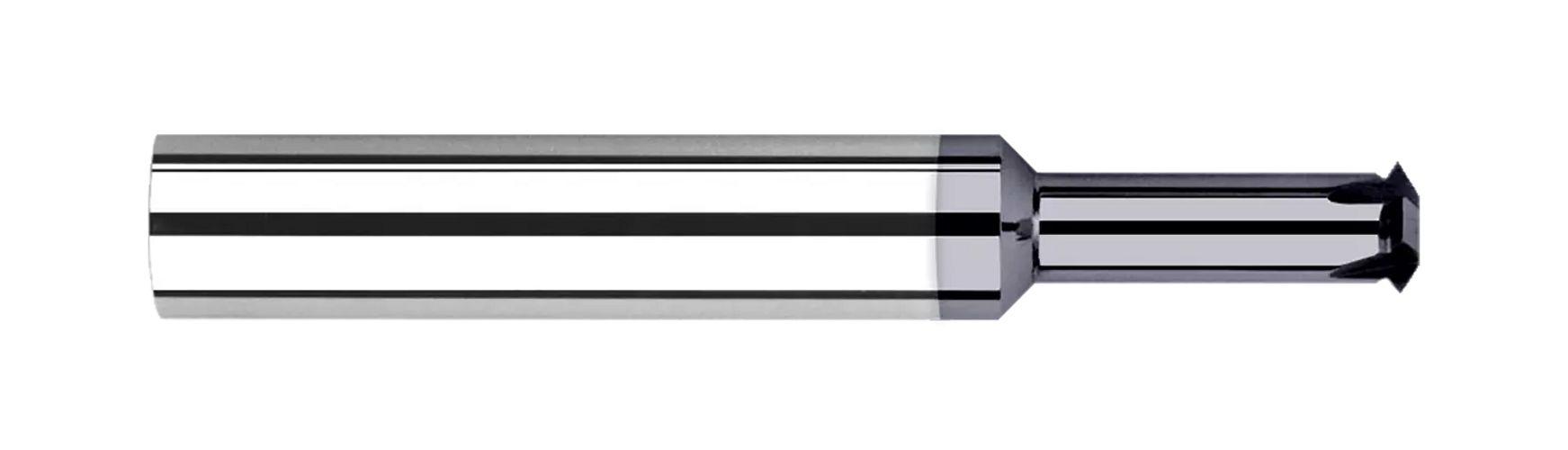

Harvey Tool 71055 Single-Form Thread Milling Cutter, 5/16 Thread, 2-1/2 in OAL, (4) Flutes, 1/4 in Dia Shank
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 71055
- MPN: 71055
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 71055, Thread Milling Cutter, Single-Form, 5/16 Thread, 0.24 in Diameter Cutting, 0.046 in Length of Cut, 2-1/2 in Overall Length, 4 Flutes, Cylindrical Shank, 1/4 in Shank Diameter, Solid Carbide, Uncoated
| Cutting Diameter | : | 0.24 in |
| Finish | : | Uncoated |
| Length of Cut | : | 0.046 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 1/4 in |
| Shank Type | : | Cylindrical |
| Thread Size | : | 5/16 |
| Thread Type | : | UN |
| Type | : | Single-Form |
- Single thread form can mill any pitch
- Cuts internal and external 60 deg UN threads
- Mills right hand and left hand threads
- Tip of included angle ground to a point
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Neck Diameter 0.1600 in
