HRV 70036-C8
Harvey Tool 70036-C8 Multi-Form Thread Milling Cutter, 10-32 Thread UN Thread, 2 in OAL, (3) Flutes, 1/8 in Dia Shank
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 70036-C8
- MPN: 70036-C8
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:

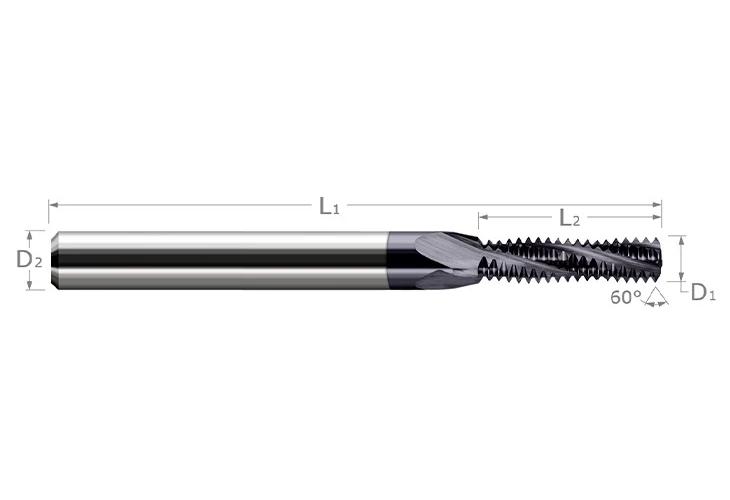

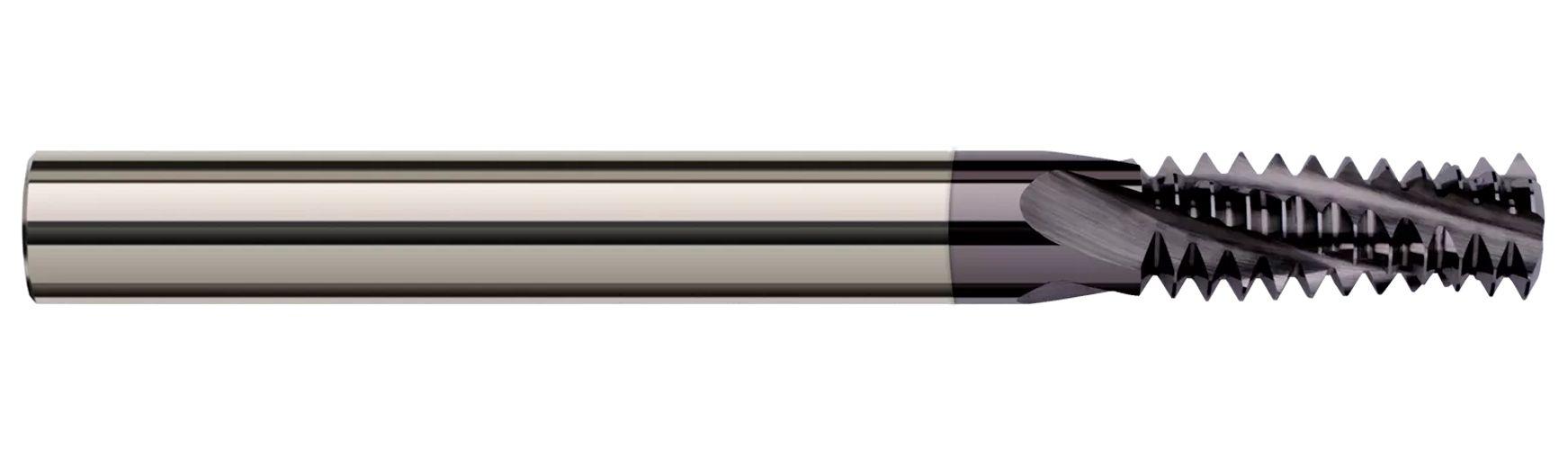

Harvey Tool, 70036-C8, Thread Milling Cutter, Multi-Form, 10-32 Thread, UN Thread, 0.12 in Diameter Cutting, 5/16 in Length of Cut, 2 in Overall Length, 3 Flutes, Cylindrical Shank, 1/8 in Shank Diameter, Solid Carbide, TiB2
| Cutting Diameter | : | 0.12 in |
| Finish | : | TiB2 |
| Length of Cut | : | 5/16 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Thread Size | : | 10-32 |
| Thread Type | : | UN |
| Type | : | Multi-Form |
- Coating works great in steels up to 60Rc
- TiB2 coating is outstanding in aluminum
- Cuts internal and external 60 deg UN threads
- Mills right hand and left hand threads
- Able to cut larger threads of the same pitch
- Helical flutes
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
