Harvey Tool 69493 HRV 69493
  1. pin-int

HRV 69493

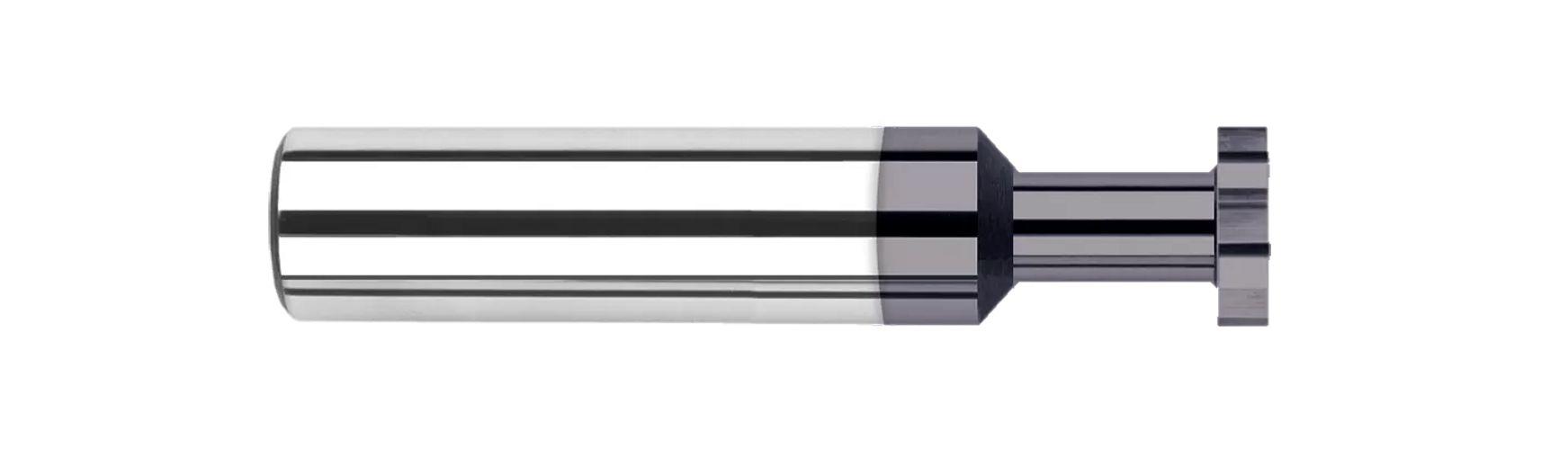

Harvey Tool 69493 Standard Slotting Keyseat Cutter, Shank Connection, 5/32 in Dia Cutter, 0.093 in W Cutting, 2 in OAL, 3/16 in Dia Shank

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 69493
  • MPN: 69493
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

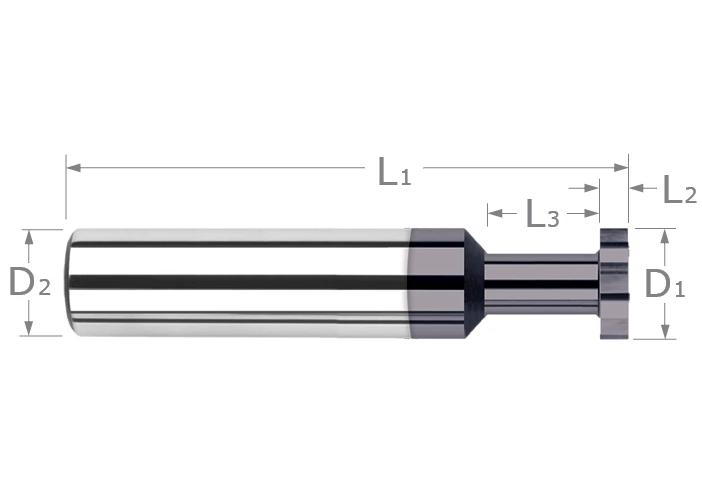

Harvey Tool, 69493, Keyseat Cutter, Standard Slotting, 5/32 in Diameter Cutter, 2 in Overall Length, 0.093 in Cutting Width, 3/16 in Shank Diameter, Right Hand Cutting Direction, Shank Connection, Solid Carbide, Uncoated

Connection Type      :      Shank
Cutter Diameter      :      5/32 in
Cutting Direction      :      Right Hand
Cutting Width      :      0.093 in
Finish      :      Uncoated
Material      :      Solid Carbide
Overall Length      :      2 in
Shank Diameter      :      3/16 in
Shank Type      :      Straight
Type      :      Standard Slotting
  • Keyseat Cutters Down to 1/16 in Diameter
  • Both sides of cutter are dished for clearance
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Neck Diameter 0.0780 in (5/64)
  • Neck Length 0.2500 in (1/4)
  • Reach Multiple (1.5x)
  • Radial Depth Of Cut 0.0290 in
  • Type I
  • Flutes 6
  • Profile Square
