Harvey Tool 67720 HRV 67720
  1. pin-int

HRV 67720

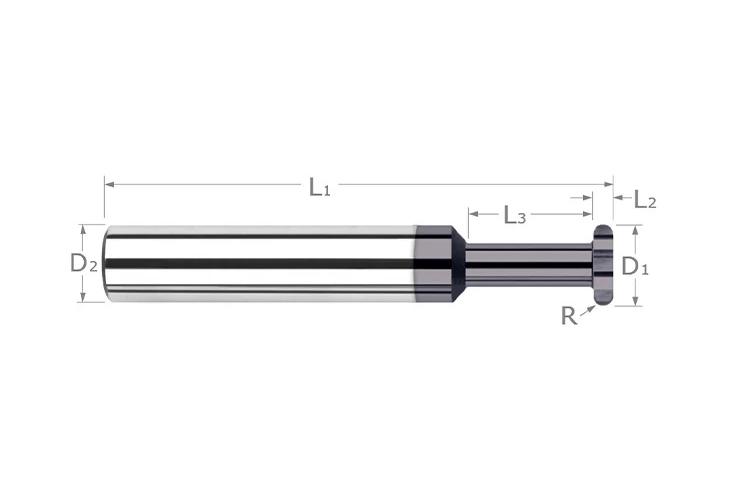

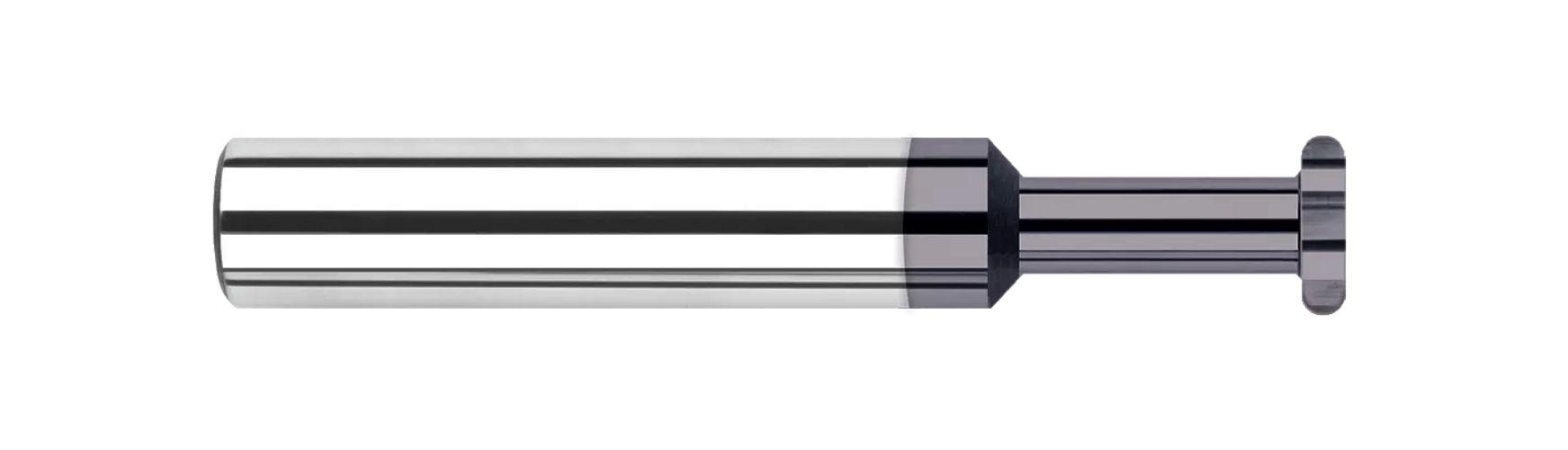

Harvey Tool 67720 Standard Slotting Keyseat Cutter, Shank Connection, 1/4 in Dia Cutter, 0.04 in W Cutting, 2-1/2 in OAL, 1/4 in Dia Shank

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 67720
  • MPN: 67720
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 67720, Keyseat Cutter, Standard Slotting, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 0.04 in Cutting Width, 1/4 in Shank Diameter, Right Hand Cutting Direction, Shank Connection, Solid Carbide, Uncoated

Connection Type      :      Shank
Cutter Diameter      :      1/4 in
Cutting Direction      :      Right Hand
Cutting Width      :      0.04 in
Finish      :      Uncoated
Material      :      Solid Carbide
Overall Length      :      2-1/2 in
Shank Diameter      :      1/4 in
Shank Type      :      Straight
Type      :      Standard Slotting
  • Ground form relieved (can be re-ground without losing radius)
  • Both sides of cutter are dished for clearance
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Flutes 6
  • Radius 0.0200 in
  • Neck Diameter 0.1250 in (1/8)
  • Neck Length 0.3750 in (3/8)
  • Reach Multiple (1.5x)
  • Radial Depth Of Cut 0.0530 in
  • Type I
  • Profile Ball
