HRV 59062-C6

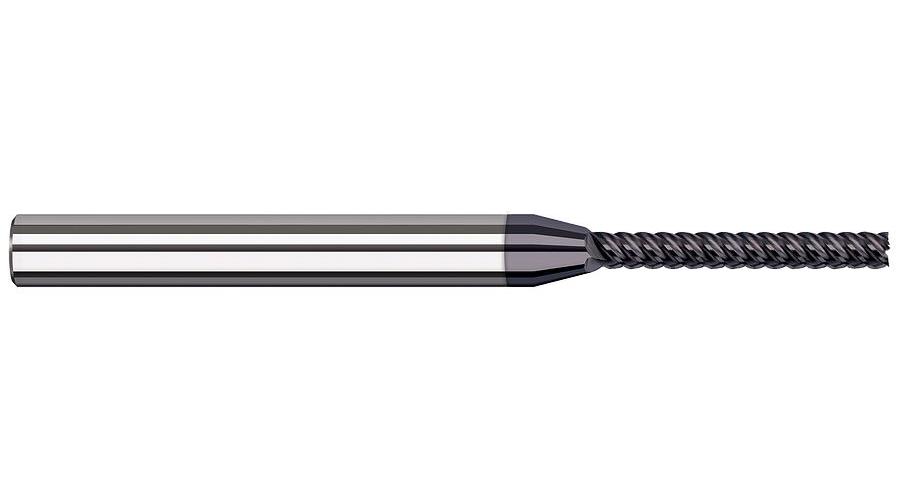

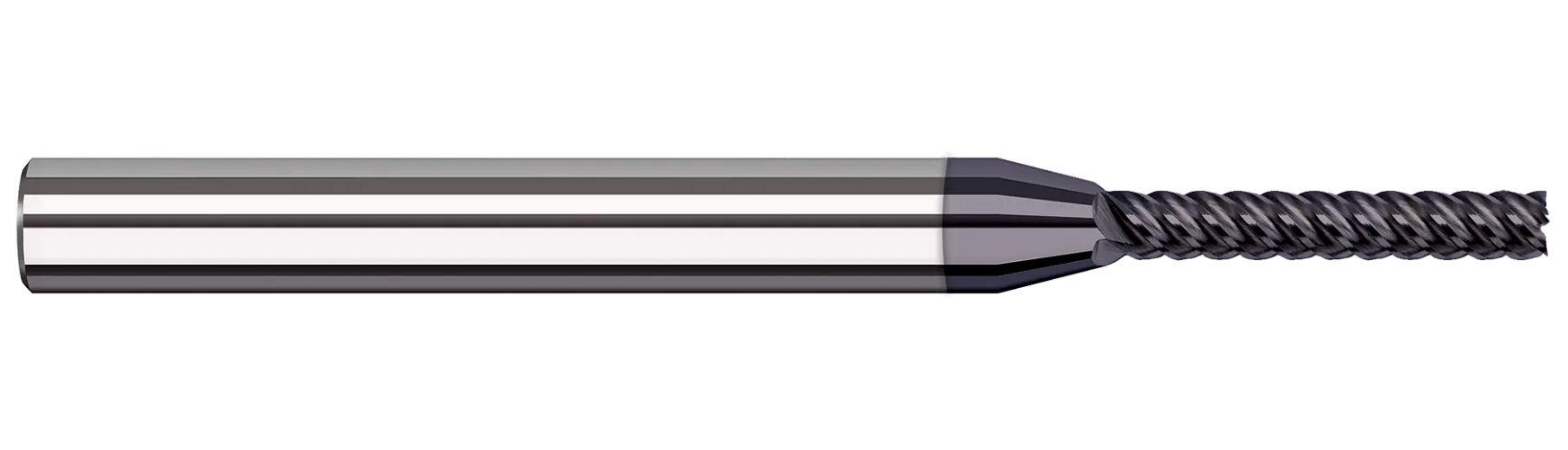

Harvey Tool 59062-C6 Variable Helix End Mill, 0.062 in Dia Cutter, 1/2 in Length of Cut, (7) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 59062-C6
- MPN: 59062-C6
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 59062-C6, Variable Helix End Mill, 0.062 in Diameter Cutter, 2-1/2 in Overall Length, 1/2 in Length of Cut, 7 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN

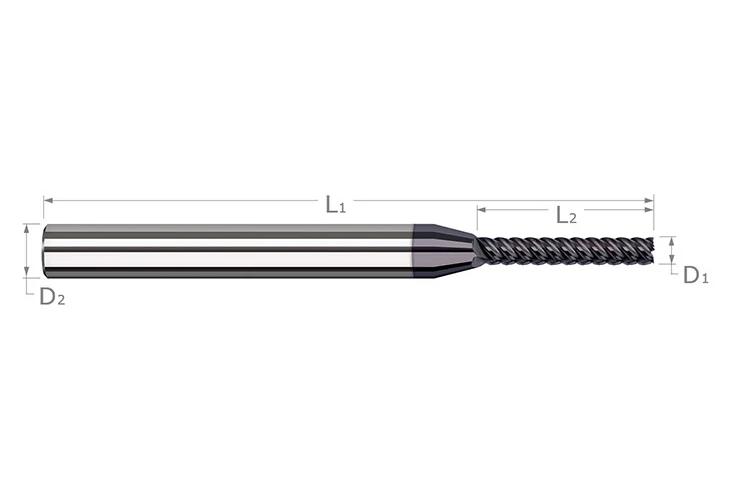

| Cutter Diameter | : | 0.062 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN |
| Flute Type | : | Helical |
| Helix Angle | : | 41 deg |
| Length of Cut | : | 1/2 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 7 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut Variable Helix |
- Variable helix design (approx. 41) reduces chatter and harmonics improving finish
- Large core and eccentric relief for improved tool life
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- End cutting (not center cutting)
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Profile Square
