Harvey Tool 48915-C3 HRV 48915-C3
  1. pin-int

HRV 48915-C3

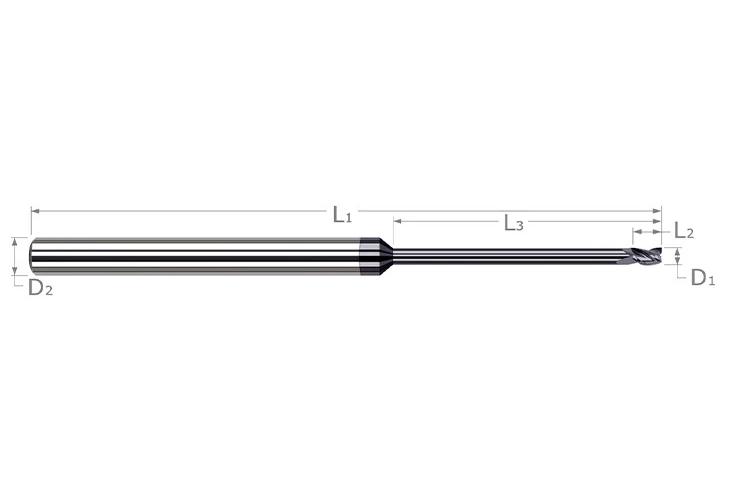

Harvey Tool 48915-C3 Center Cut Stub Length Miniature End Mill, 0.015 in Dia Cutter, 0.022 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 48915-C3
  • MPN: 48915-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 48915-C3, Miniature End Mill, Center Cut Stub Length, 0.015 in Diameter Cutter, 2-1/2 in Overall Length, 0.022 in Length of Cut, 3 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN

Cutter Diameter      :      0.015 in
Cutting Direction      :      Right Hand
Finish      :      AlTiN
Flute Type      :      Helical
Helix Angle      :      30 deg
Length of Cut      :      0.022 in
Material      :      Solid Carbide
Number of Flutes      :      3
Overall Length      :      2-1/2 in
Shank Diameter      :      1/8 in
Shank Type      :      Cylindrical
Type      :      Center Cut Stub Length
  • Long length design for deep cavities, up to 10 in overall length
  • Stub flute for maximum rigidity
  • Reduced neck diameter to avoid heeling
  • Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
  • Overall Reach 0.2250 in
  • Reach Multiple (15x)
  • Profile Square
