Harvey Tool 47641 HRV 47641
  1. pin-int

HRV 47641

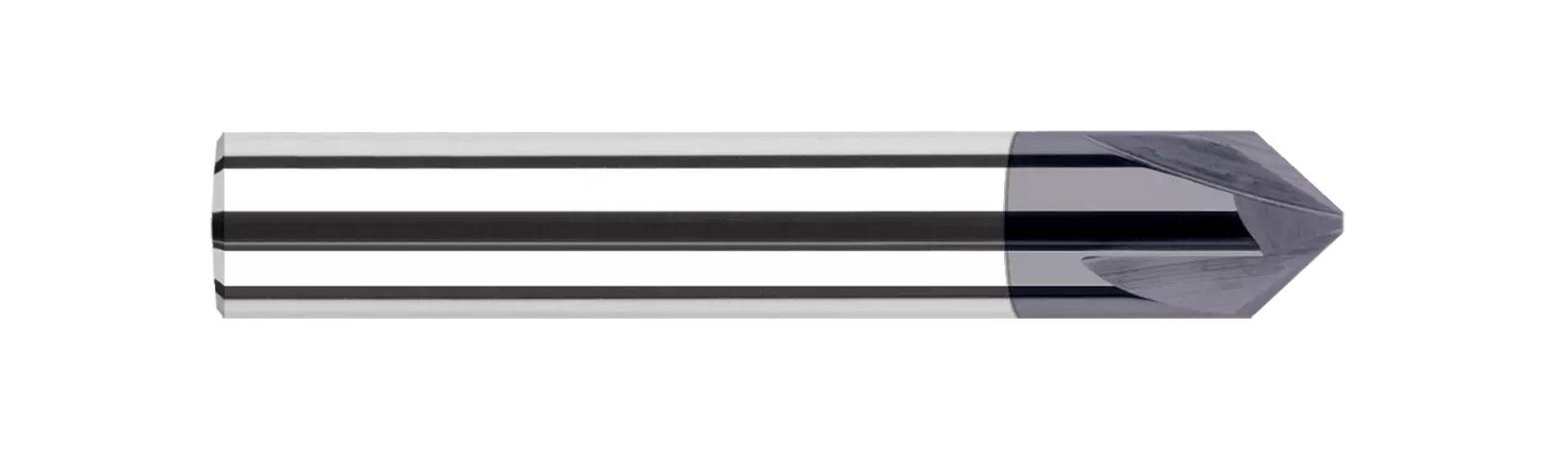

Harvey Tool 47641 Chamfer Cutter, 1/4 in Dia Cutter Head, 82 deg Included Angle, 2-1/2 in OAL, Solid Carbide, Uncoated

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 47641
  • MPN: 47641
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 47641, Chamfer Cutter, 1/4 in Diameter Cutter Head, 82 deg Included Angle, 2-1/2 in Overall Length, 2 Flutes, Point End Style, Cylindrical Shank, 1/4 in Shank Diameter, Right Hand Cutting Direction, 1/4 in Diameter Cutting, 0.144 in Length of Cut, Solid Carbide, Uncoated

Cutter Head Diameter      :      1/4 in
Cutting Diameter      :      1/4 in
Cutting Direction      :      Right Hand
End Style      :      Point
Finish      :      Uncoated
Included Angle      :      82 deg
Length of Cut      :      0.144 in
Material      :      Solid Carbide
Number of Flutes      :      2
Overall Length      :      2-1/2 in
Shank Diameter      :      1/4 in
Shank Type      :      Cylindrical
Type      :      Type I Center Cut
  • Choose from three styles Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes
  • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
  • End Cutting 4 flute center cutting geometry to blend the floor and a chamfered wall in a single pass
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Angle Per Side 41
  • Tip 0.0100 in
  • Type I
