HRV 44062-C3

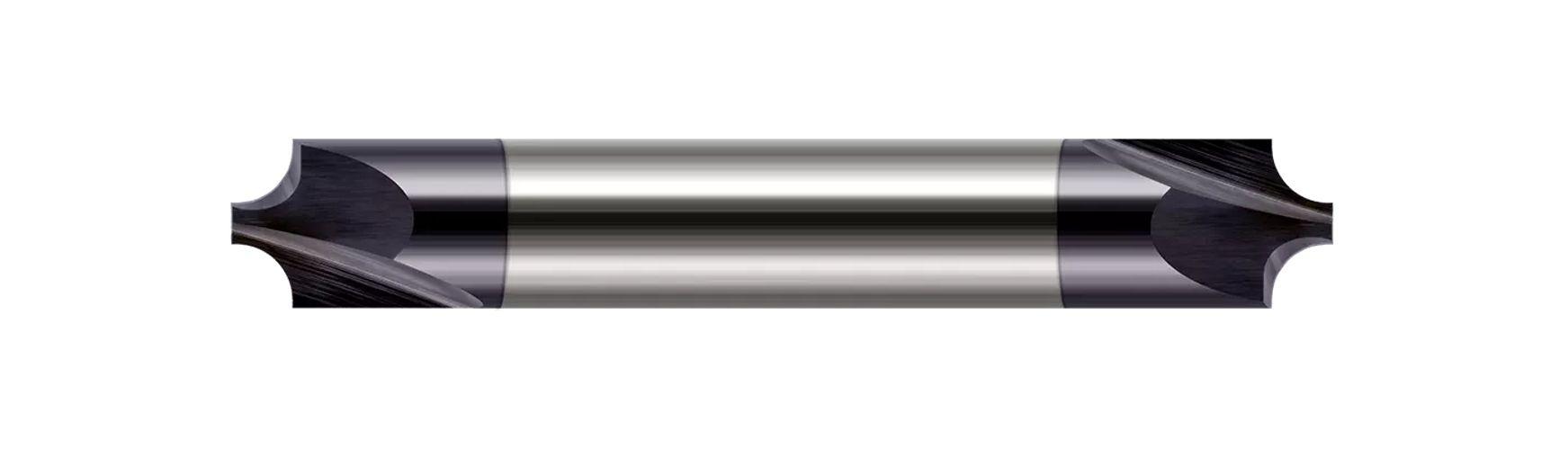

Harvey Tool 44062-C3 Corner Rounding End Mill, 1/2 in Dia Cutter, 0.067 in Length of Cut, (4) Flutes, 1/2 in Dia Shank, 3 in OAL, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 44062-C3
- MPN: 44062-C3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 44062-C3, Corner Rounding End Mill, 1/2 in Diameter Cutter, 3 in Overall Length, 0.067 in Length of Cut, 4 Flutes, 1/2 in Shank Diameter, Right Hand Cutting Direction, Cylindrical Shank, Solid Carbide, AlTiN
| Cutter Diameter | : | 1/2 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN |
| Length of Cut | : | 0.067 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 3 in |
| Shank Diameter | : | 1/2 in |
| Shank Type | : | Cylindrical |
| Type | : | Double End Unflared |
- Unflared shoulder and pilot for full radius form
- Double-Ended
- Axial depth of cut = radius plus .005 in
- End cutting
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Radius 0.0620 in (1/16)
- Pilot Diameter 0.2500 in (1/4)
- Profile Corner Rounder
