Harvey Tool 30230 HRV 30230
  1. pin-int

HRV 30230

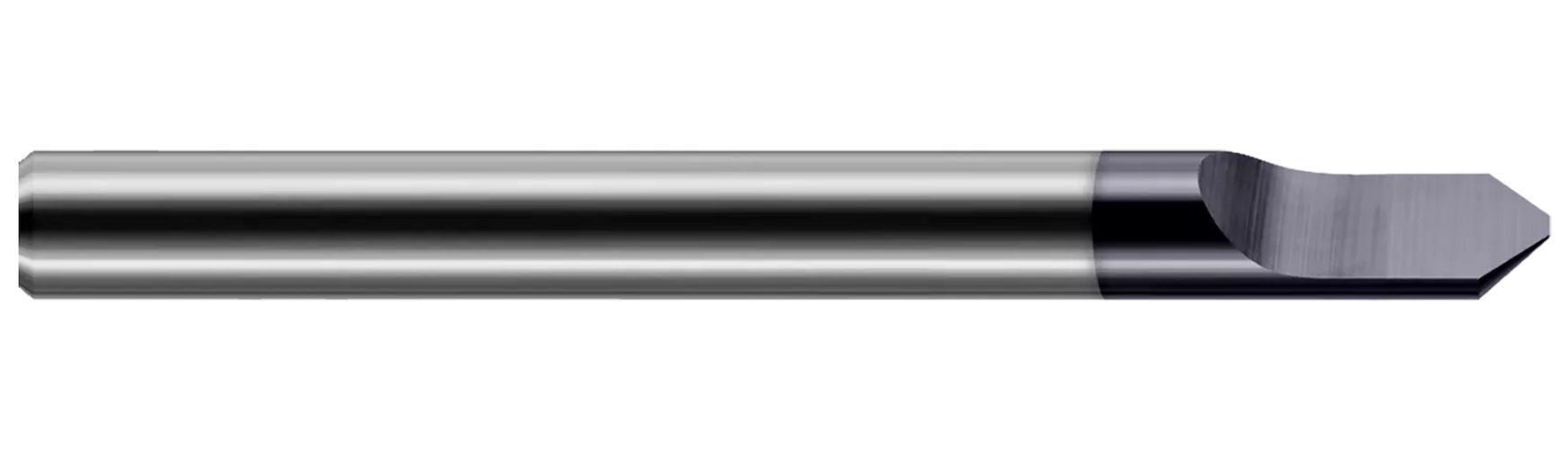

Harvey Tool 30230 Type II Engraving Cutter, Flat Shape, 0.01 in Dia Tip, 0.207 in Length of Cut, Single End

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 30230
  • MPN: 30230
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 30230, Engraving Cutter, Type II, Flat Shape, 0.01 in Tip Diameter, 1/4 in Shank Diameter, 2-1/2 in Overall Length, 60 deg Angle, 0.207 in Length of Cut, 0.375 in Split Length, Right Hand Cutting Direction, Single End, Solid Carbide, Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites Material Application, Uncoated

Angle      :      60 deg
Cutting Direction      :      Right Hand
Finish      :      Uncoated
Length of Cut      :      0.207 in
Material Application      :      Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites
Material      :      Solid Carbide
Overall Length      :      2-1/2 in
Shank Diameter      :      1/4 in
Shape      :      Flat
Single or Double End      :      Single
Split Length      :      0.375 in
Tip Diameter      :      0.01 in
Type      :      Type II
  • Tipped Off End Diameter for Improved Cutting
  • Flat (F) is Flat Generated in Workpiece
  • Half Round Drill Style
  • Relieved for Right Hand Milling
  • Flat On Part 0.0100 in
  • Flutes 1
