Harvey Tool 30010 HRV 30010
  1. pin-int

HRV 30010

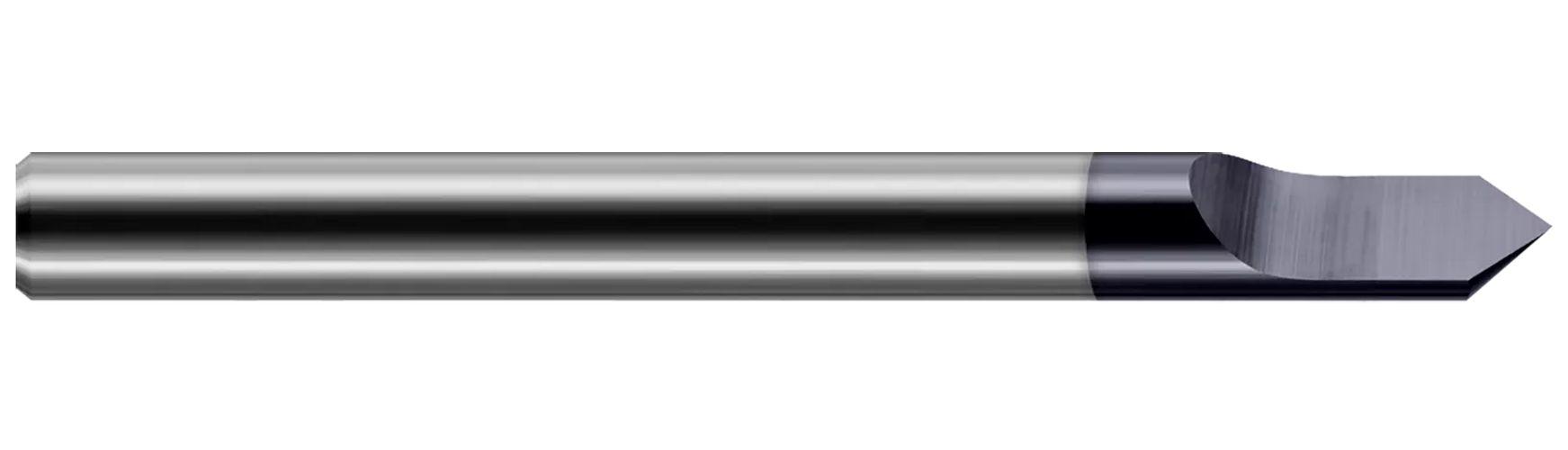

Harvey Tool 30010 Type II Engraving Cutter, Pointed Shape, 0.108 in Length of Cut, Single End

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 30010
  • MPN: 30010
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 30010, Engraving Cutter, Type II, Pointed Shape, 1/8 in Shank Diameter, 1-1/2 in Overall Length, 60 deg Angle, 0.108 in Length of Cut, 0.375 in Split Length, Right Hand Cutting Direction, Single End, Solid Carbide, Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites Material Application, Uncoated

Angle      :      60 deg
Cutting Direction      :      Right Hand
Finish      :      Uncoated
Length of Cut      :      0.108 in
Material Application      :      Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites
Material      :      Solid Carbide
Overall Length      :      1-1/2 in
Shank Diameter      :      1/8 in
Shape      :      Pointed
Single or Double End      :      Single
Split Length      :      0.375 in
Type      :      Type II
  • Ground to a point
  • Half round drill style
  • Relieved for right hand milling
  • Flutes 1
