HRV 20990

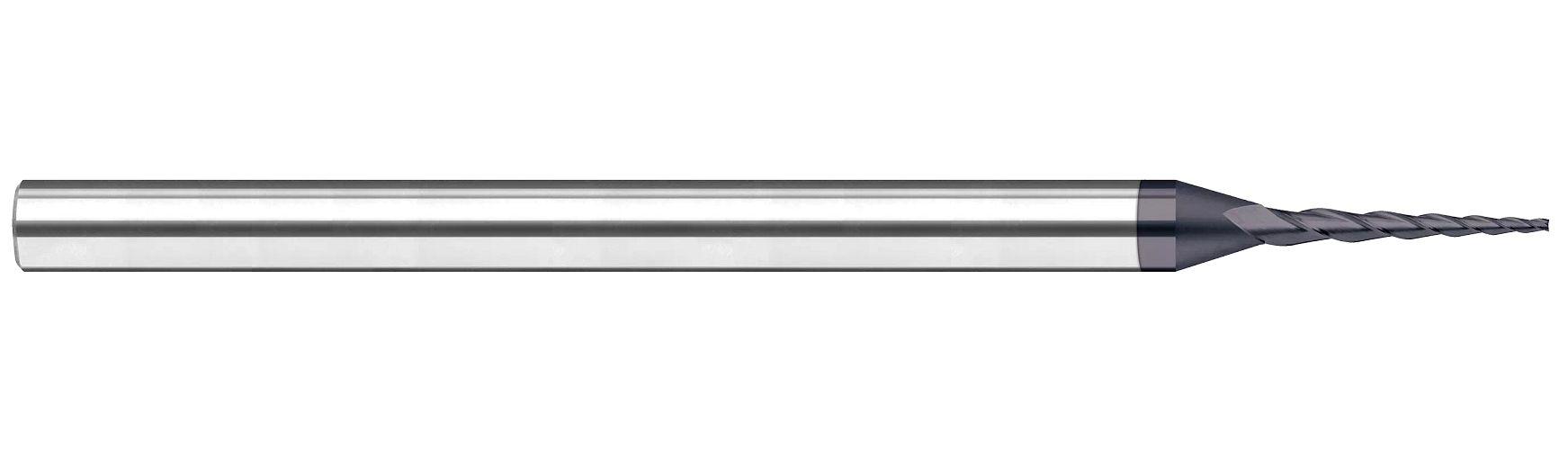

Harvey Tool 20990 Center Cut Miniature End Mill, 0.09 in Dia Cutter, 0.9 in Length of Cut, (3) Flutes, 1/4 in Dia Shank, 4 in OAL, Uncoated
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 20990
- MPN: 20990
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 20990, Miniature End Mill, Center Cut, 0.09 in Diameter Cutter, 4 in Overall Length, 0.9 in Length of Cut, 3 Flutes, Upcut Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
| Cutter Diameter | : | 0.09 in |
| Cutting Direction | : | Right Hand |
| Finish | : | Uncoated |
| Flute Type | : | Upcut |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 0.9 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 4 in |
| Shank Diameter | : | 1/4 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut |
- Length of cut up to 10x end diameter
- Long length design for deep cavity machining
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Composites, Hardened Alloys
- Angle Per Side 3
- Profile Square
