Harvey Tool 19201-C3 HRV 19201-C3
  1. pin-int

HRV 19201-C3

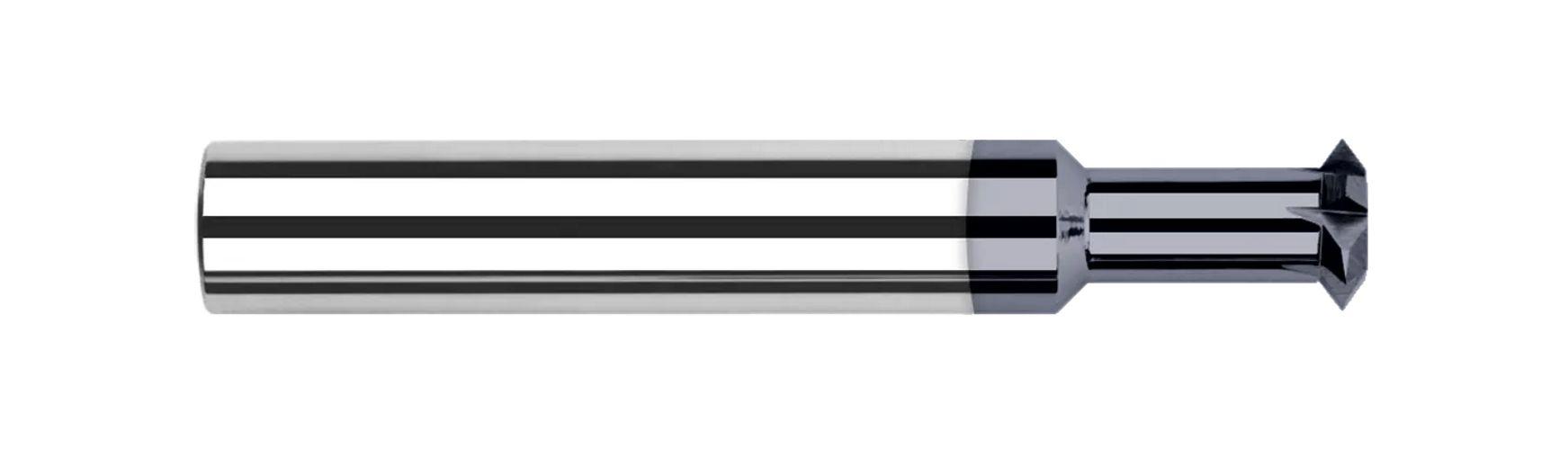

Harvey Tool 19201-C3 Long Reach Reduced Neck Double Angle Shank Cutter, Shank Connection, 90 deg, 1/8 in Dia Cutter, 0.062 in W Cutting, Right Hand Cutting, Solid Carbide

  • Manufacturer: Harvey Tool
  • Brand Name: Harvey Tool
  • Part Number: HRV 19201-C3
  • MPN: 19201-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Harvey Tool, 19201-C3, Double Angle Shank Cutter, Long Reach Reduced Neck, 1/8 in Diameter Cutter, 0.062 in Cutting Width, 4 Teeth, 90 deg Angle, 1/8 in Shank Diameter, Shank Connection, 1-1/2 in Overall Length, Right Hand Cutting Direction, Solid Carbide, AlTiN

Angle      :      90 deg
Connection Type      :      Shank
Cutter Diameter      :      1/8 in
Cutting Direction      :      Right Hand
Cutting Width      :      0.062 in
Finish      :      AlTiN
Material      :      Solid Carbide
Number of Teeth      :      4
Overall Length      :      1-1/2 in
Shank Diameter      :      1/8 in
Shank Type      :      Cylindrical
Type      :      Long Reach Reduced Neck
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
  • Neck Diameter 0.0620 in (1/16)
  • Neck Length 0.1870 in (3/16)
  • Flutes 4
  • Profile Pointed
