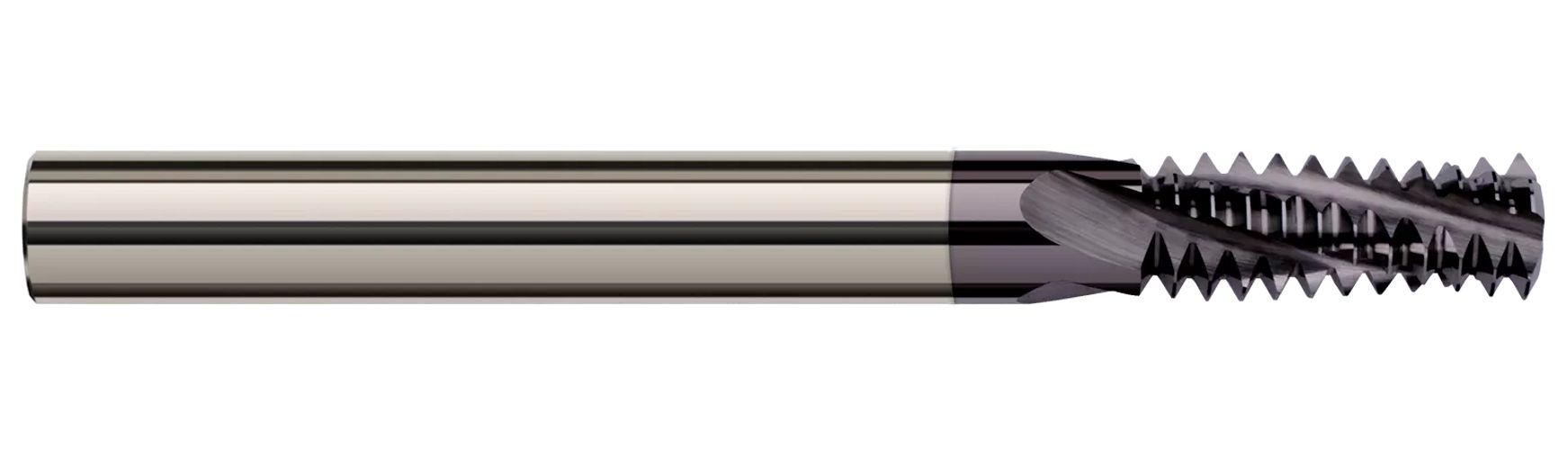

Harvey Tool 16903-C3 Multi-Form Metric Thread Milling Cutter, M3-0.50 Thread Metric Thread, 2 in OAL, (3) Flutes, 1/8 in Dia Shank
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 16903-C3
- MPN: 16903-C3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 16903-C3, Thread Milling Cutter, Multi-Form Metric, M3-0.50 Thread, Metric Thread, 0.085 in Diameter Cutting, 0.178 in Length of Cut, 2 in Overall Length, 3 Flutes, Cylindrical Shank, 1/8 in Shank Diameter, Solid Carbide, AlTiN
| Cutting Diameter | : | 0.085 in |
| Finish | : | AlTiN |
| Length of Cut | : | 0.178 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Thread Size | : | M3-0.50 |
| Thread Type | : | Metric |
| Type | : | Multi-Form Metric |
- Cuts Internal and External 60 deg UN Threads
- Helical Flutes
- Fractional Shanks
- Mills Right Hand and Left Hand Threads
- Able to cut larger threads of the same pitch
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
