HRV 16078

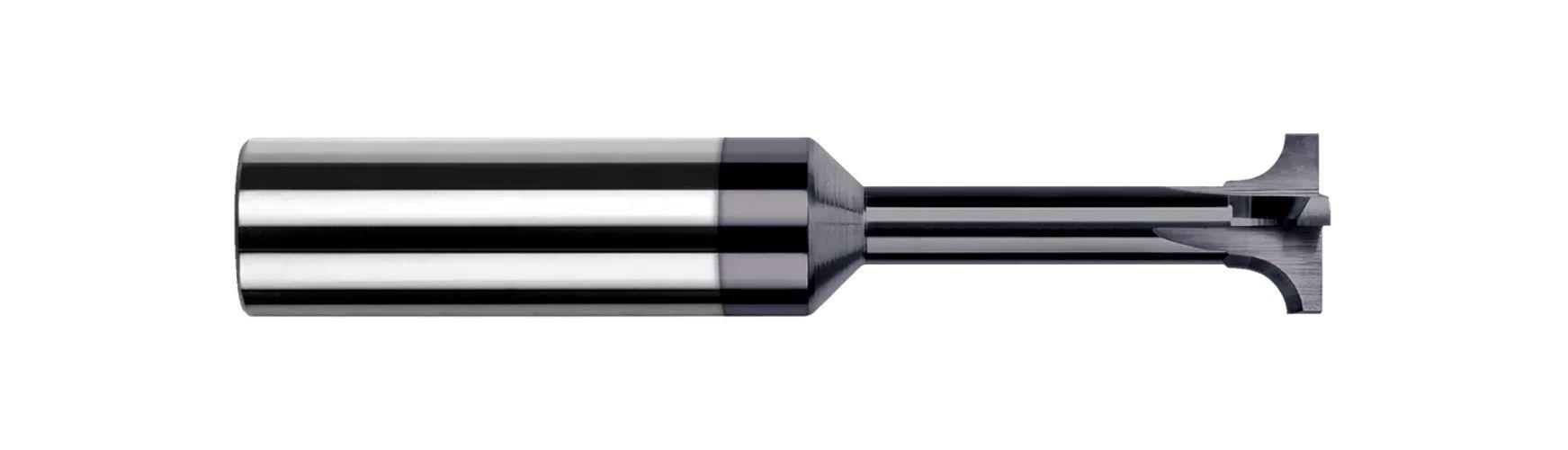

Harvey Tool 16078 Flared Corner Rounding End Mill, 0.191 in Dia Cutter, 0.078 in Length of Cut, (3) Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 16078
- MPN: 16078
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 16078, Corner Rounding End Mill, Flared, 0.191 in Diameter Cutter, 2-1/2 in Overall Length, 0.078 in Length of Cut, 3 Flutes, 3/8 in Shank Diameter, Right Hand Cutting Direction, Cylindrical Shank, Solid Carbide, Uncoated
| Cutter Diameter | : | 0.191 in |
| Cutting Direction | : | Right Hand |
| Finish | : | Uncoated |
| Length of Cut | : | 0.078 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 3/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Flared |
- Designed to mill radius on back side of workpiece
- 5 deg flares at neck and shoulder to avoid steps
- Flares are tangent to radius (flare is blended to radius to ensure smooth form)
- Cutting on radius and flares only
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Head Diameter 0.3750 in (3/8)
- Radius 0.0780 in (5/64)
- Neck Length 1.0000 in (1)
- Radius Center 0.1710 in
- Profile Corner Rounder
