HRV 15324-C3

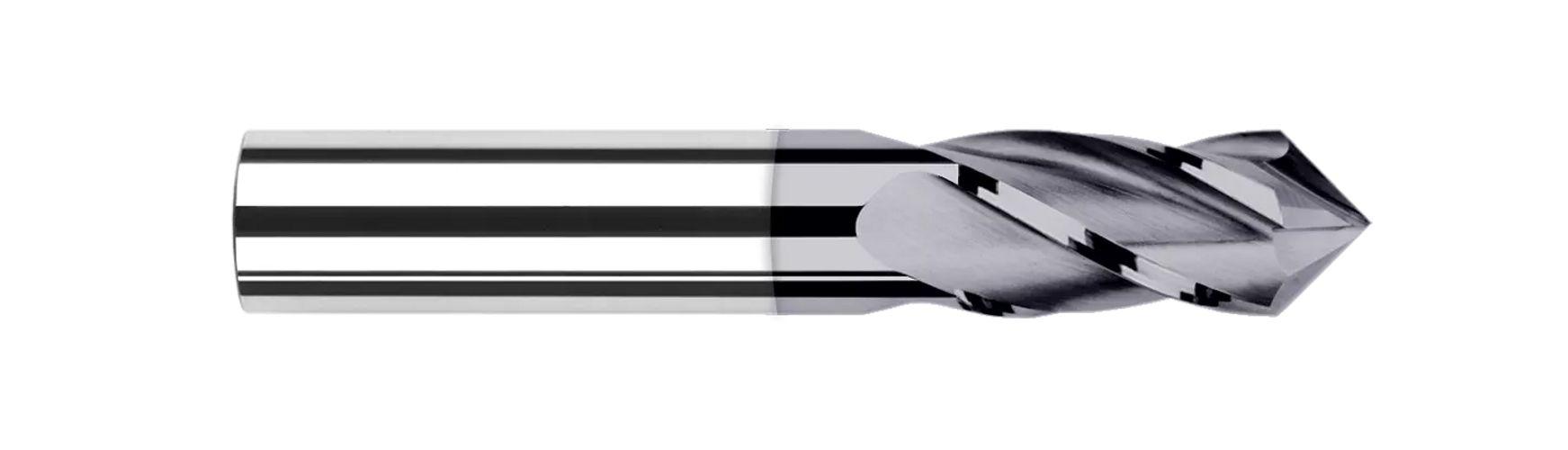

Harvey Tool 15324-C3 Drill/End Mill, 3/8 in Dia, 90 deg Point Angle, (4) Flutes, 7/8 in L Flute, 7/8 in Length of Cut, 3/8 in Dia Shank, 2-1/2 in OAL, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 15324-C3
- MPN: 15324-C3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 15324-C3, Drill/End Mill, 3/8 in Diameter, 2-1/2 in Overall Length, 7/8 in Flute Length, 4 Flutes, Helical Flute, 3/8 in Shank Diameter, Cylindrical Shank, 7/8 in Length of Cut, 90 deg Point, Mill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, AlTiN, Applicable Materials: Non-Ferrous Metal/Cast Iron/Steel/Stainless Steel/Composites
| Applicable Materials | : | Non-Ferrous Metal/Cast Iron/Steel/Stainless Steel/Composites |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Solid Carbide |
| Diameter | : | 3/8 in |
| Finish | : | AlTiN |
| Flute Length | : | 7/8 in |
| Flute Type | : | Helical |
| Length of Cut | : | 7/8 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 2-1/2 in |
| Point Angle | : | 90 deg |
| Point Type | : | Mill |
| Shank Diameter | : | 3/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Mill Style |
- Not Recommended for Drilling Steel
- Cutter Diameter 0.3750 in (3/8)
- Web Thickness 0.0080 in
