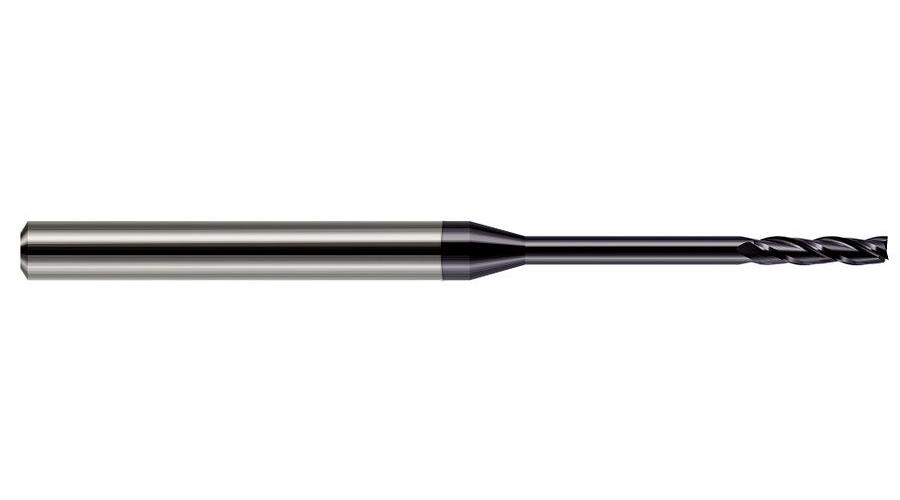

Harvey Tool 13693-C3 Center Cut Long Length Miniature End Mill, 0.093 in Dia Cutter, 3/4 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 13693-C3
- MPN: 13693-C3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 13693-C3, Miniature End Mill, Center Cut Long Length, 0.093 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 3 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
| Cutter Diameter | : | 0.093 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN |
| Flute Type | : | Helical |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 3/4 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut Long Length |
- Long length design for deep cavities
- Long flutes for deep pocket milling
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Reach Multiple (13x)
- Profile Square
