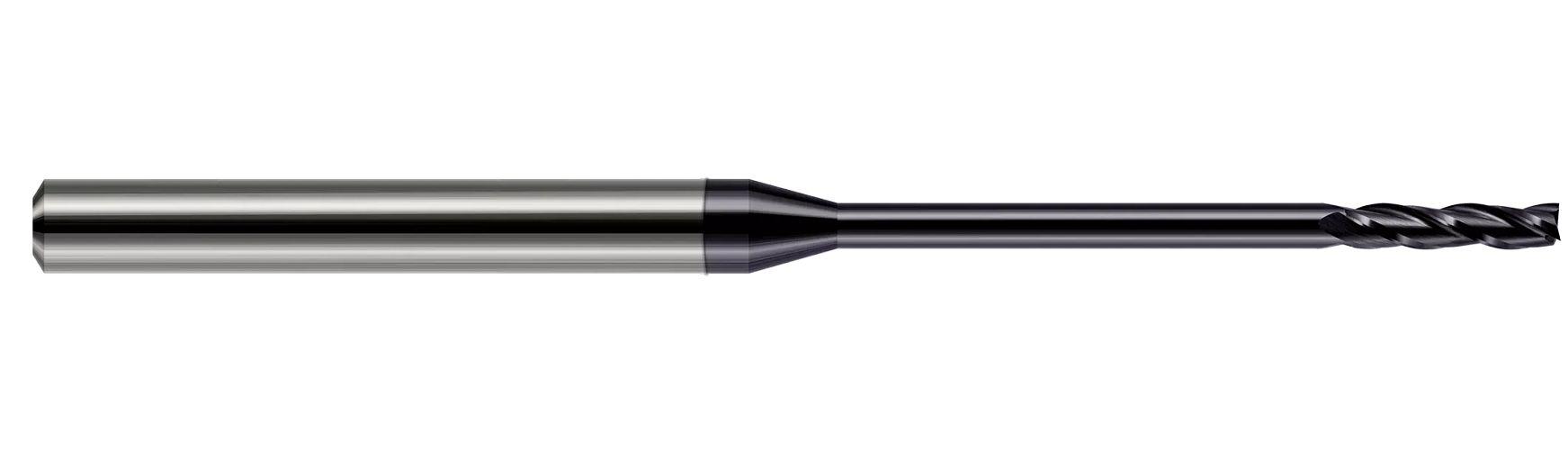

Harvey Tool 13655 Center Cut Long Length Miniature End Mill, 0.055 in Dia Cutter, 0.385 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, Uncoated
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 13655
- MPN: 13655
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:

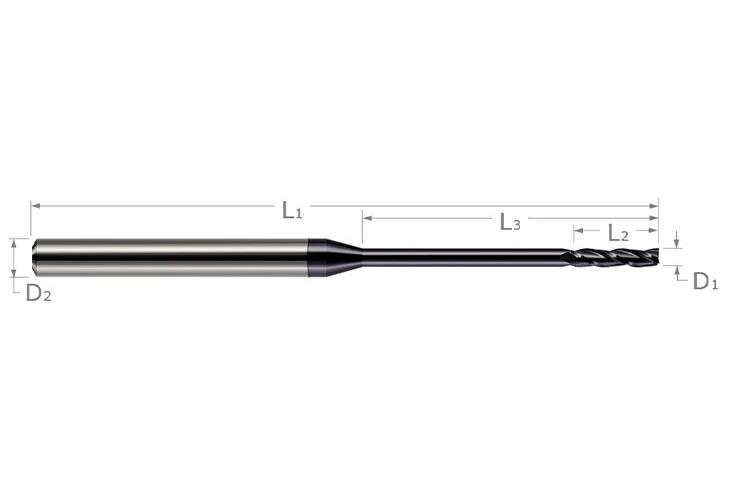

Harvey Tool, 13655, Miniature End Mill, Center Cut Long Length, 0.055 in Diameter Cutter, 2-1/2 in Overall Length, 0.385 in Length of Cut, 3 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
| Cutter Diameter | : | 0.055 in |
| Cutting Direction | : | Right Hand |
| Finish | : | Uncoated |
| Flute Type | : | Helical |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 0.385 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 2-1/2 in |
| Shank Diameter | : | 1/8 in |
| Shank Type | : | Cylindrical |
| Type | : | Center Cut Long Length |
- Long length design for deep cavities
- Long flutes for deep pocket milling
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.7700 in
- Reach Multiple (14x)
- Profile Square
