HRV 11010

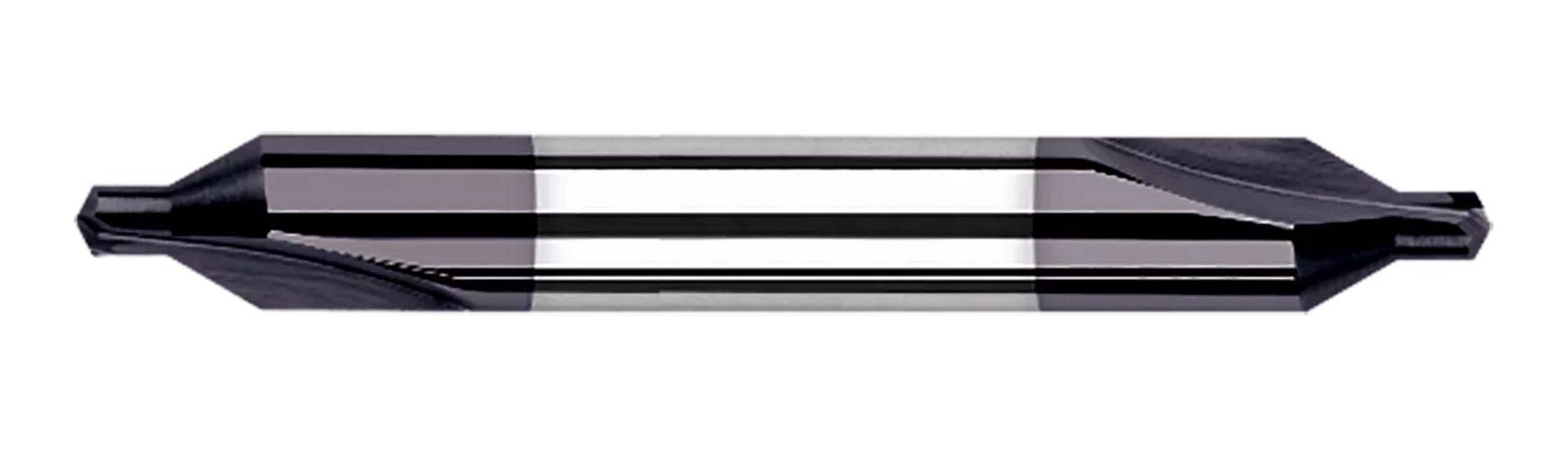

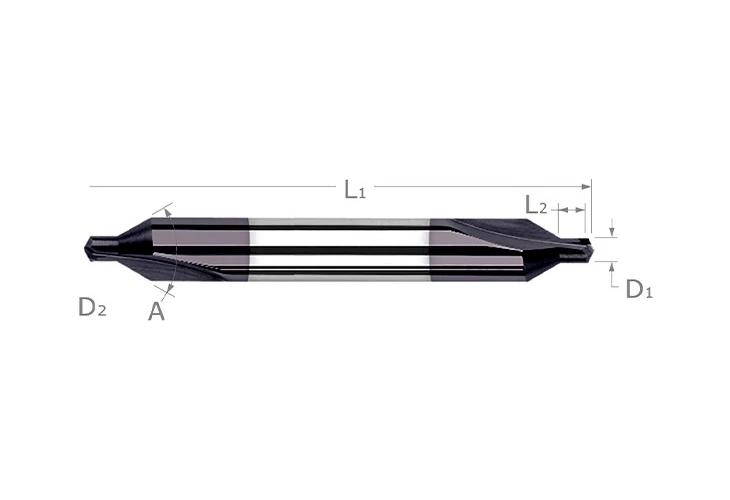

Harvey Tool 11010 Combined Drill & Countersink, #72 Drill - Wire, 0.635 mm Drill - Metric, 0.025 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, Uncoated
- Manufacturer: Harvey Tool
- Brand Name: Harvey Tool
- Part Number: HRV 11010
- MPN: 11010
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
Harvey Tool, 11010, Combined Drill & Countersink, #72 Drill - Wire, 0.635 mm Drill - Metric, 0.025 in Drill - Decimal Inch, 1-1/2 in Overall Length, 2 Flutes, Helical Flute, 0.025 in Flute Length, 3.17 mm Shank, Cylindrical Shank, 118 deg Point, Plain Point, 60 deg Included Angle, Right Hand Cutting Direction, Solid Carbide Cutting Edge, For Screw Size: 00, Uncoated, Applicable Materials: Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites
| Applicable Materials | : | Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Solid Carbide |
| Drill Size - Decimal Inch | : | 0.025 in |
| Drill Size - Metric | : | 0.635 mm |
| Drill Size - Wire | : | #72 |
| Finish | : | Uncoated |
| Flute Length | : | 0.025 in |
| Flute Type | : | Helical |
| For Screw Size | : | 00 |
| Included Angle | : | 60 deg |
| Material | : | Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 1-1/2 in |
| Point Angle | : | 118 deg |
| Point Type | : | Plain |
| Shank Size | : | 3.17 mm |
| Shank Type | : | Cylindrical |
- Double-ended
- Drill Diameter 0.0250 in
-
