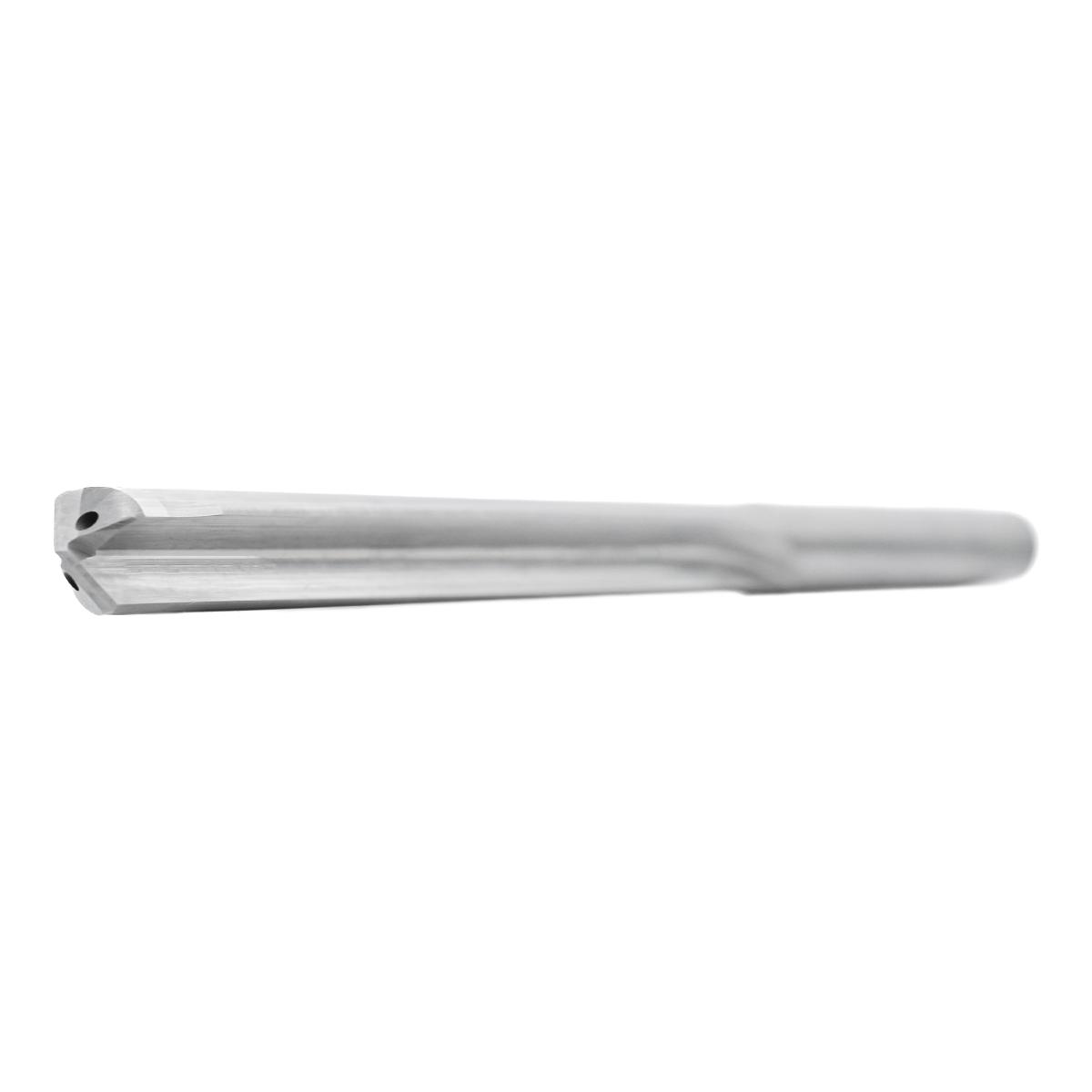

GWS Tool Group 17404375 174 0° Helix Intermediate Length Straight Flute Drill, 7/16 in Drill - Fraction, 0.4375 in Drill - Decimal Inch, (2) Flutes, Carbide
- Manufacturer: GWS Tool Group
- Brand Name: GWS Tool Group
- Part Number: CJT 17404375
- MPN: 17404375
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
-
Price:
GWS Tool Group, 17404375, Straight Flute Drill, 0° Helix Intermediate Length, Series: 174, Imperial, 7/16 in Drill - Fraction, 0.4375 in Drill - Decimal Inch, 6-5/8 in Overall Length, 2 Flutes, Straight Flute, 4-3/16 in Flute Length, 7/16 in Shank, 125 deg Point, 4-Facet Point, Applicable Materials: Cast Iron/HRSA/Non-Ferrous/Stainless/Steel, Through Coolant (Yes/No): Yes, Carbide, Uncoated
| Applicable Materials | : | Cast Iron/HRSA/Non-Ferrous/Stainless/Steel |
| Drill Diameter Measurement System | : | Imperial |
| Drill Size - Decimal Inch | : | 0.4375 in |
| Drill Size - Fraction | : | 7/16 in |
| Finish | : | Uncoated |
| Flute Length | : | 4-3/16 in |
| Flute Type | : | Straight |
| Material | : | Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 6-5/8 in |
| Point Angle | : | 125 deg |
| Point Type | : | 4-Facet |
| Series | : | 174 |
| Shank Size | : | 7/16 in |
| Through Coolant (Yes/No) | : | Yes |
| Type | : | 0° Helix Intermediate Length |
- Carbide tipped wear resistance
- Coolant through design produces straightest holes to reamer like finish
- Extra length tip for increased regrinds
- Not suited for continuous chip low carbon steels or alloy aluminums
