GUHRING 9065110059500

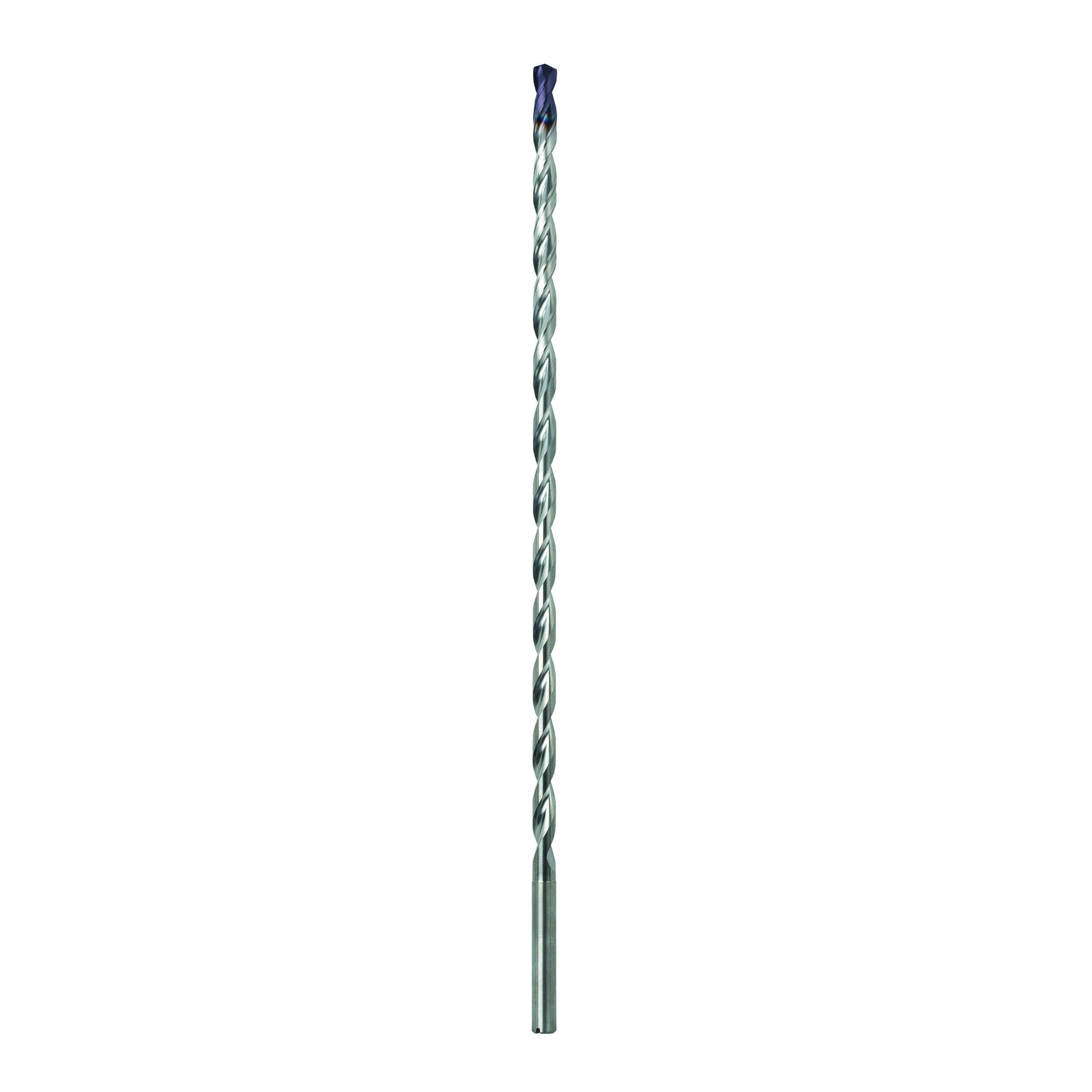

Guhring 9065110059500 6511 Type RT 100 T Imperial Deep Hole Drill, 15/64 in Drill - Fraction, 0.2343 in Drill - Decimal Inch, 180 mm OAL, Solid Carbide

  • Manufacturer: Guhring
  • Brand Name: Guhring
  • Part Number: GUHRING 9065110059500
  • MPN: 9065110059500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Guhring Deep Hole Drill, Type RT 100 T Imperial, Series: 6511, 15/64 in Drill - Fraction, 0.2343 in Drill - Decimal Inch, 180 mm Overall Length, 20xD Cutting Depth, 2 Flutes, Spiral Flute, 140 mm Flute Length, 6 mm Dia x 36 mm L Shank, Straight Shank, 135 deg Point, Cone Relief Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, TiAlN, Applicable Materials: Steel, Stainless Steel, Gray Cast Iron, Malleable Iron, Spheroidal Iron, Aluminum, Non-Ferrous Metal, Titanium Alloy, Hardened Steel and Chilled Cast Iron, Specifications Met: DIN 6535-HA, Through Coolant: Yes

Applicable Materials      :      Steel, Stainless Steel, Gray Cast Iron, Malleable Iron, Spheroidal Iron, Aluminum, Non-Ferrous Metal, Titanium Alloy, Hardened Steel and Chilled Cast Iron
Cutting Depth      :      20xD
Cutting Direction      :      Right Hand
Cutting Edge Material      :      Solid Carbide
Drill Size - Decimal Inch      :      0.2343 in
Drill Size - Fraction      :      15/64 in
Finish      :      TiAlN
Flute Length      :      140 mm
Flute Type      :      Spiral
Material      :      Solid Carbide
Number of Flutes      :      2
Overall Length      :      180 mm
Point Angle      :      135 deg
Point Type      :      Cone Relief
Series      :      6511
Shank Size      :      6 mm Dia x 36 mm L
Shank Type      :      Straight
Specifications Met      :      DIN 6535-HA
Through Coolant (Yes/No)      :      Yes
Type      :      Type RT 100 T Imperial
  • Main cutting edge form concave
  • Optimized flute design
  • Maximum diameter of coolant ducts
  • Observe coolant pressure
  • Double margin
