GEARWRENCH® 82306 GRW-82306
  1. pin-int

GRW-82306

GEARWRENCH® 82306 Punch and Chisel Set, Center/Cold/Long Taper/Pin/Starting Style, 1/4 to 1 in Chisel, 15/16 to 3/8 in Punch, 19 Punches, 8 Chisels, 27 Pieces

  • Manufacturer: Apex Tool Group
  • Brand Name: GEARWRENCH®
  • Part Number: GRW-82306
  • MPN: 82306
  • UPC: 099575823060
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

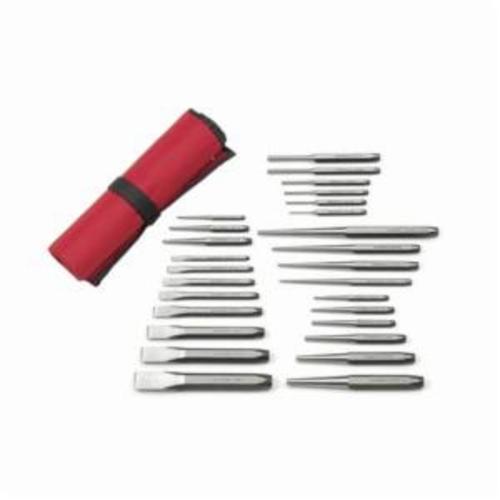

The GEARWRENCH 27-piece punch and chisel set includes: 8 cold chisels, 3 center punches, 6 pin punches, 4 long taper (drift) punches, 6 starter punches, and a cloth tool roll for storage. Use these cold chisels for cutting metal rivets, bolts, and nuts. Use the pin punch to drive out pins and rivets during final removal. The center punch is used for marking center lines, and pilot drill locations, while long taper punches are used to install and remove pins and shafts and to align holes. Use starter punches for both starting and installing pins and rivets.

GEARWRENCH® Punch and Chisel Set, 1/4 to 1 in Chisel, 15/16 to 3/8 in Punch, 11 in Overall Length, 19 Punches, 8 Chisels, 27 Piece, Center/Cold/Long Taper/Pin/Starting, Set Contents: 82261 1/4 x 4-3/4 x 1/4 in, 82262 3/8 x 5 x 5/16 in, 82263 7/16 x 5-1/2 x 3/8 in, 82264 1/2 x 6 x 3/8 in, 82265 5/8 x 6-1/2 x 3/8 in, 82266 3/4 x 7 x 5/8 in, 82267 7/8 x 7-1/2 x 3/4 in, 82268 1 x 8 x 7/8 in Cold Chisels, 82269 1/4 x 4-1/4 in, 82270 3/8 x 5 in, 82271 7/16 x 5-1/2 in Center Punches, 82272 3/32 x 4-3/4 x 5/16 in, 82273 1/8 x 5 x 5/16 in, 82274 5/32 x 5-1/4 x 5/16 in, 82275 3/16 x 5-1/2 x 5/16 in, 82276 1/4 x 7 x 3/8 in, 82277 5/16 x 7 x 1/2 in, 82278 1/8 x 8 x 3/8 in Long Taper Punches, 82279 5/32 x 8-1/2 x 1/2 in, 82280 3/16 x 9 x 1/2 in, 82281 1/4 x 11 x 5/8 in Long Taper Punches, 82282 5/32 x 5 x 3/8 in, 82283 3/16 x 5 x 3/8 in, 82284 1/4 x 6 x 1/2 in Starter Punches, 82285 1/8 x 4-1/2 x 5/16 in Starter, 82286 5/16 x 7 x 5/8 in and 82287 3/8 x 8 x 3/4 in Starter Punches, Alloy Steel, Black Phosphate

Chisel Size      :      1/4 to 1 in
Finish      :      Black Phosphate
Material      :      Alloy Steel
Number of Chisels      :      8
Number of Pieces      :      27
Number of Punches      :      19
Overall Length      :      11 in
Punch Size      :      15/16 to 3/8 in
Set Contents      :      82261 1/4 x 4-3/4 x 1/4 in, 82262 3/8 x 5 x 5/16 in, 82263 7/16 x 5-1/2 x 3/8 in, 82264 1/2 x 6 x 3/8 in, 82265 5/8 x 6-1/2 x 3/8 in, 82266 3/4 x 7 x 5/8 in, 82267 7/8 x 7-1/2 x 3/4 in, 82268 1 x 8 x 7/8 in Cold Chisels, 82269 1/4 x 4-1/4 in, 82270 3/8 x 5 in, 82271 7/16 x 5-1/2 in Center Punches, 82272 3/32 x 4-3/4 x 5/16 in, 82273 1/8 x 5 x 5/16 in, 82274 5/32 x 5-1/4 x 5/16 in, 82275 3/16 x 5-1/2 x 5/16 in, 82276 1/4 x 7 x 3/8 in, 82277 5/16 x 7 x 1/2 in, 82278 1/8 x 8 x 3/8 in Long Taper Punches, 82279 5/32 x 8-1/2 x 1/2 in, 82280 3/16 x 9 x 1/2 in, 82281 1/4 x 11 x 5/8 in Long Taper Punches, 82282 5/32 x 5 x 3/8 in, 82283 3/16 x 5 x 3/8 in, 82284 1/4 x 6 x 1/2 in Starter Punches, 82285 1/8 x 4-1/2 x 5/16 in Starter, 82286 5/16 x 7 x 5/8 in and 82287 3/8 x 8 x 3/4 in Starter Punches
Style      :      Center/Cold/Long Taper/Pin/Starting

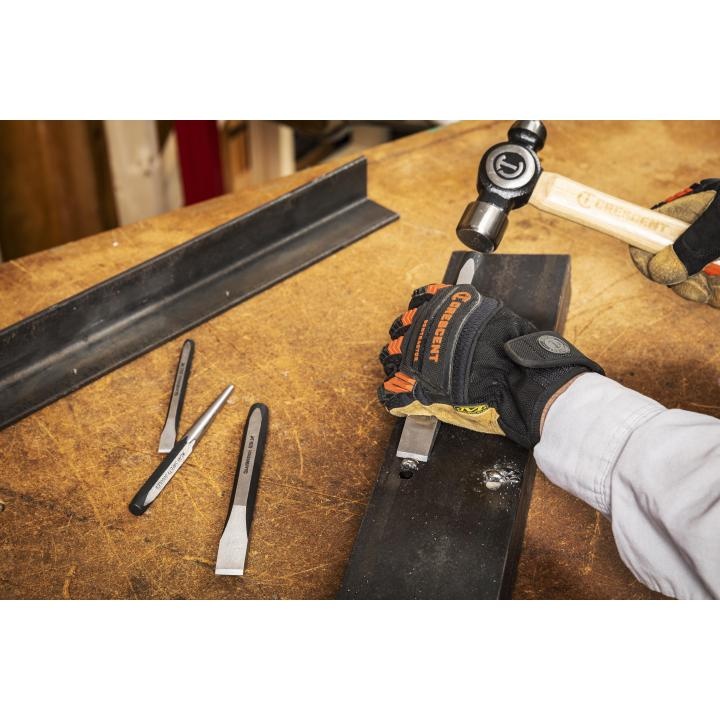

  • Precision hardened chisels for cutting metal rivets, bolts, and nuts
  • Pin punches for driving out pins and rivets during final removal
  • Center punches for marking center lines or pilot drill locations
  • Long taper punch lets you install or remove pins and shafts, and aligns holes with ease
  • Starter punches for both starting and installing pins or rivets
  • Includes tool roll for storage and organization
