GARR 48365

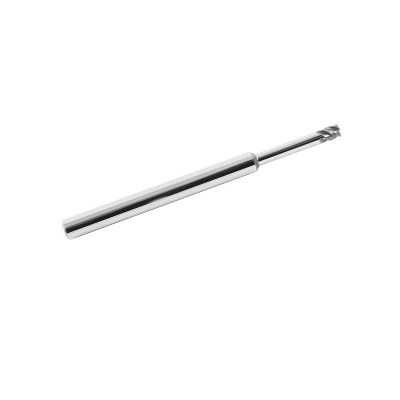

GARR 48365 H45 Center Cutting High Feed High Performance Corner Radius End Mill, 3/16 in Dia Cutter, 0.06 in Corner Radius, 3/16 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlTiN
- Manufacturer: Garr Tool Company
- Brand Name: GARR
- Part Number: GARR 48365
- MPN: 48365
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
GARR Corner Radius End Mill, Center Cutting High Feed High Performance, Series: H45, 3/16 in Diameter Cutter, 0.06 in Corner Radius, 2-1/2 in Overall Length, 3/16 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Solid Submicron Grain Carbide, AlTiN
| Corner Radius | : | 0.06 in |
| Cutter Diameter | : | 3/16 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN |
| Flute Type | : | Spiral |
| Helix Angle | : | 45 deg |
| Length of Cut | : | 3/16 in |
| Material | : | Solid Submicron Grain Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 2-1/2 in |
| Series | : | H45 |
| Shank Diameter | : | 1/4 in |
| Type | : | Center Cutting High Feed High Performance |
- For light axial/radial depths of cut
- Rigid work holding, machine stability and part integrity are critical
- Recommended for high Rockwell materials
- Modified reach lengths available within 48 hr
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GARR_H45_3_0_75_Catalog.pdf
