GARR 20100 GARR-20100
  1. pin-int

GARR-20100

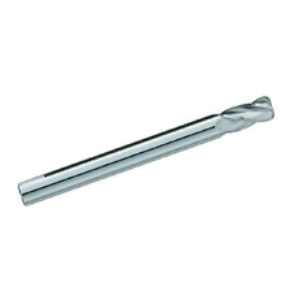

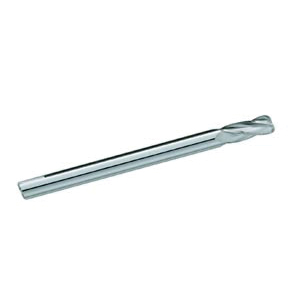

GARR 20100 630R Center Cutting Extra Length Single End Mill, 1/8 in Dia Cutter, 0.01 in Corner Radius, 1 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 3 in OAL, Uncoated

  • Manufacturer: Garr Tool Company
  • Brand Name: GARR
  • Part Number: GARR-20100
  • MPN: 20100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

GARR End Mill, Center Cutting Extra Length Single End, Series: 630R, 1/8 in Cutter Dia, 0.01 in Corner Radius, 3 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, Uncoated

Corner Radius      :      0.01 in
Cutter Diameter      :      1/8 in
Cutting Direction      :      Right Hand
Finish      :      Uncoated
Flute Type      :      Spiral
Helix Angle      :      30 deg
Length of Cut      :      1 in
Material      :      Submicron Grain Solid Carbide
Number of Flutes      :      4
Overall Length      :      3 in
Series      :      630R
Shank Diameter      :      1/8 in
Shank Type      :      Round
Type      :      Center Cutting Extra Length Single End
  • General Purpose
  • Extended reach
  • For Stronger Corners and Part Radius
  • Can be modified with a neck within 48 hr
  • Extremely versatile
