GARR-08607

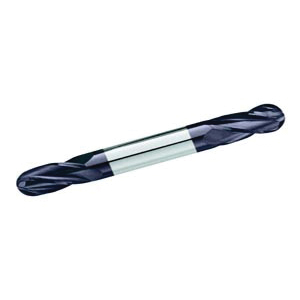

GARR 08607 995MA Ball End Center Cutting Stub Length Double End Mill, 6 mm Dia Cutter, 12 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 65 mm OAL, TiAlN
- Manufacturer: Garr Tool Company
- Brand Name: GARR
- Part Number: GARR-08607
- MPN: 08607
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
GARR End Mill, Ball End Center Cutting Stub Length Double End, Series: 995MA, 6 mm Cutter Dia, 65 mm Overall Length, 12 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN
| Cutter Diameter | : | 6 mm |
| Cutting Direction | : | Right Hand |
| Finish | : | TiAlN |
| Flute Type | : | Spiral |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 12 mm |
| Material | : | Submicron Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 65 mm |
| Series | : | 995MA |
| Shank Diameter | : | 6 mm |
| Type | : | Ball End Center Cutting Stub Length Double End |
- Solid submicron grain carbide end mill - center cutting
- Shorter flute length for rigidity
- Dry or semi-dry machining
- Up to 40% faster than uncoated
- Ball radius tolerance +.000-.001 in (+.000-.025mm)
