GARR-08560

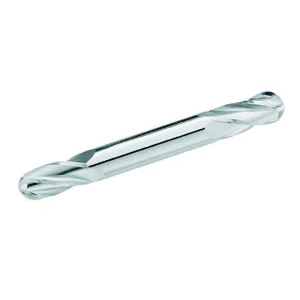

GARR 08560 Ball End Center Cutting Stub Length Double End End Mill, 3.5 mm Dia Cutter, 7 mm Length of Cut, 4 Flutes, 4 mm Dia Shank, 50 mm OAL, Uncoated
- Manufacturer: Garr Tool Company
- Brand Name: GARR
- Part Number: GARR-08560
- MPN: 08560
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 1/PK
-
Price:
GARR End Mill, Ball End Center Cutting Stub Length Double End, Series: 995M, 3.5 mm Diameter Cutter, 50 mm Overall Length, 7 mm Length of Cut, 4 Flutes, Spiral Flute, 4 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, Uncoated
| Cutter Diameter | : | 3.5 mm |
| Cutting Direction | : | Right Hand |
| Finish | : | Uncoated |
| Flute Type | : | Spiral |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 7 mm |
| Material | : | Submicron Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 50 mm |
| Series | : | 995M |
| Shank Diameter | : | 4 mm |
| Type | : | Ball End Center Cutting Stub Length Double End |
- Shorter flute length for rigidity
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
