GARR-07580

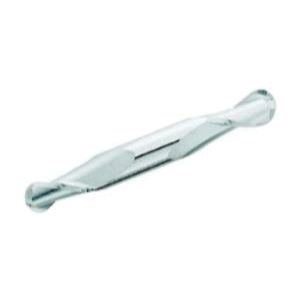

GARR 07580 985M Ball End Center Cutting Stub Length Double End Mill, 4.5 mm Dia Cutter, 9.5 mm Length of Cut, 2 Flutes, 5 mm Dia Shank, 65 mm OAL, Uncoated
- Manufacturer: Garr Tool Company
- Brand Name: GARR
- Part Number: GARR-07580
- MPN: 07580
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
GARR End Mill, Ball End Center Cutting Stub Length Double End, Series: 985M, 4.5 mm Diameter Cutter, 65 mm Overall Length, 9.5 mm Length of Cut, 2 Flutes, Spiral Flute, 5 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, Uncoated
| Cutter Diameter | : | 4.5 mm |
| Cutting Direction | : | Right Hand |
| Finish | : | Uncoated |
| Flute Type | : | Spiral |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 9.5 mm |
| Material | : | Submicron Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 65 mm |
| Series | : | 985M |
| Shank Diameter | : | 5 mm |
| Type | : | Ball End Center Cutting Stub Length Double End |
- Solid submicron grain carbide end mill - center cutting
- Shorter flute length for rigidity
- Extremely versatile
- Ball radius tolerance +.000-.001 in (+.000-.025mm)
