GARR-07547

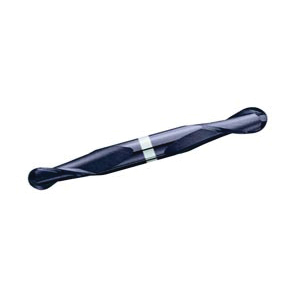

GARR 07547 Ball End Center Cutting Stub Length Double End End Mill, 2.5 mm Dia Cutter, 5 mm Length of Cut, 2 Flutes, 3 mm Dia Shank, 38 mm OAL, TiAlN
- Manufacturer: Garr Tool Company
- Brand Name: GARR
- Part Number: GARR-07547
- MPN: 07547
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 1/PK
-
Price:
GARR End Mill, Ball End Center Cutting Stub Length Double End, 2.5 mm Cutter Dia, 38 mm Overall Length, 5 mm Length of Cut, 2 Flutes, Spiral Flute, 3 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN
| Cutter Diameter | : | 2.5 mm |
| Cutting Direction | : | Right Hand |
| Finish | : | TiAlN |
| Flute Type | : | Spiral |
| Helix Angle | : | 30 deg |
| Length of Cut | : | 5 mm |
| Material | : | Submicron Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 38 mm |
| Series | : | 985MA |
| Shank Diameter | : | 3 mm |
| Type | : | Ball End Center Cutting Stub Length Double End |
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
