GARR-06127

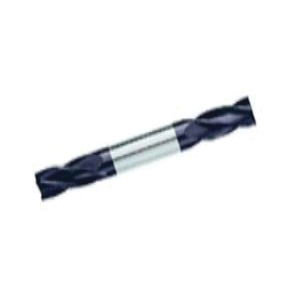

GARR 06127 175MA Center Cutting Stub Length Double End Square End Mill, 7/16 in Dia Cutter, 9/16 in Length of Cut, 4 Flutes, 7/16 in Dia Shank, 2-3/4 in OAL, TiAlN

  • Manufacturer: Garr Tool Company
  • Brand Name: GARR
  • Part Number: GARR-06127
  • MPN: 06127
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

GARR End Mill, Center Cutting Stub Length Double End Square End, Series: 175MA, 7/16 in Diameter Cutter, 2-3/4 in Overall Length, 9/16 in Length of Cut, 4 Flutes, Spiral Flute, 7/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN

Cutter Diameter      :      7/16 in
Cutting Direction      :      Right Hand
Finish      :      TiAlN
Flute Type      :      Spiral
Helix Angle      :      30 deg
Length of Cut      :      9/16 in
Material      :      Submicron Solid Carbide
Number of Flutes      :      4
Overall Length      :      2-3/4 in
Series      :      175MA
Shank Diameter      :      7/16 in
Type      :      Center Cutting Stub Length Double End Square End
  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated
